Description:

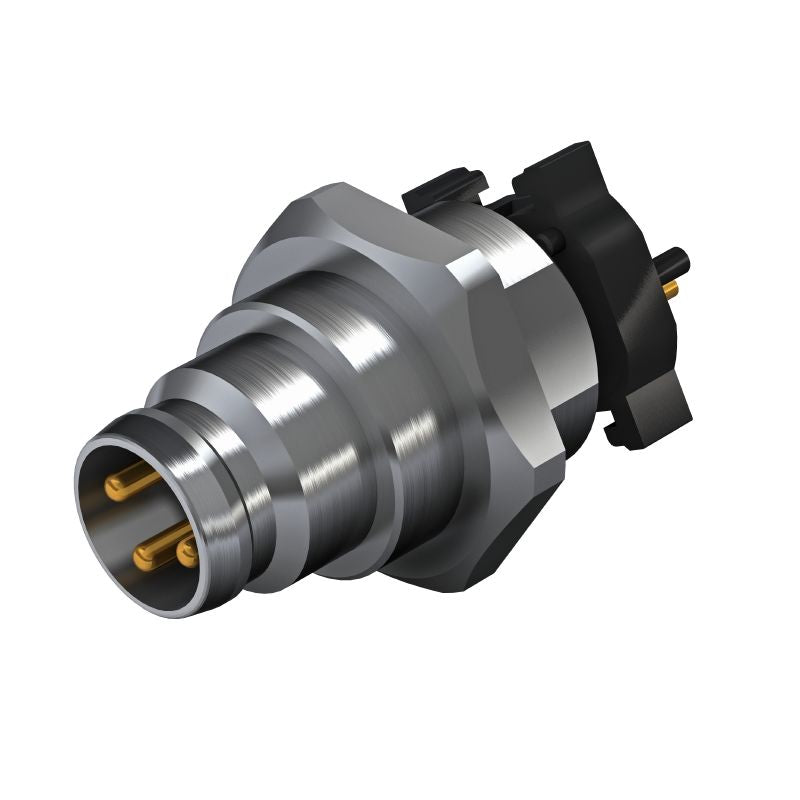

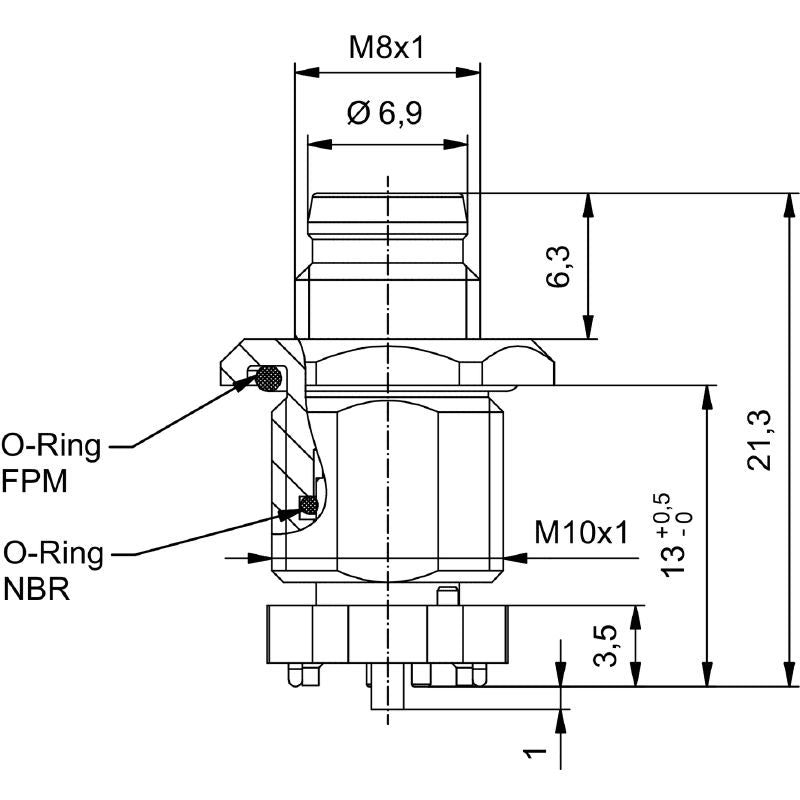

Introducing the SAIE-M8S-4-F13SMT PCB plug-in connector, expertly engineered for versatility and reliability This connector features four poles and is designed with a mounting thread of M10, making installation a breeze with a standard height of 13 mm It can handle a nominal voltage of 30 V and a rated voltage of up to 60 V for 3-pole configurations, while remaining reliable at 30 V for 4-, 5-, and 8-pole setups.

The robust housing is constructed from nickel-plated CuZn, ensuring durability, while the Cu-alloy contact materials are enhanced with a gold surface for optimal conductivity Rated with an IP67 protection degree, this connector is built to endure challenging environments Users can expect a lifespan of up to 100 plugging cycles, and it offers impressive insulation resistance of 100 MΩ It operates effectively across a temperature range of -30 to 80 °C, making it a dependable choice for various applications.

Features and Benefits:

•Nickel-plated housing.

•Front mounting type.

•Protection degree IP67.

•Designed for harsh environmental conditions.

•Low tightening torque requirements.

Specifications:
