2423560000 - Durable M12 5-Pole Plug Connector, IP67, RoHS Compliant (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

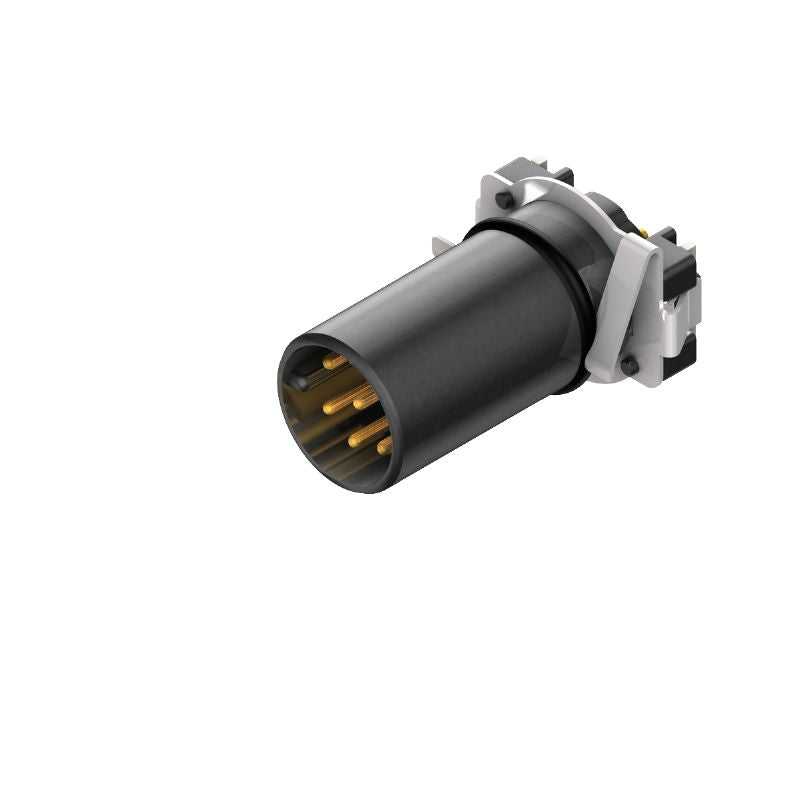

Introducing the M12 plug connector, meticulously crafted for reliability with a built-in 5-pole configuration This connector adheres to RoHS standards and enjoys an exemption under RoHS regulation 6c Its robust housing, made from LCP material, guarantees longevity in a variety of applications With a rated voltage of 250 V for the 4-pole setup and 60 V for the 5-pole variant, it supports a nominal current of 4 A.

This connector is capable of operating within a temperature spectrum of -25 to 95 degrees Celsius and features an impressive IP67 rating, making it ideal for challenging conditions The Au (Gold) contact surfaces enhance conductivity and provide excellent resistance against corrosion, ensuring optimal performance.

Features and Benefits:

•A-coded for easy identification.

•Shield connection for improved signal integrity.

•Can withstand plugging cycles of at least 100.

•UL 94 flammability rating of V-0.

Specifications:
