2423790000 - M8 3-Pole Connector with IP67 Protection and Durable LCP Housing (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

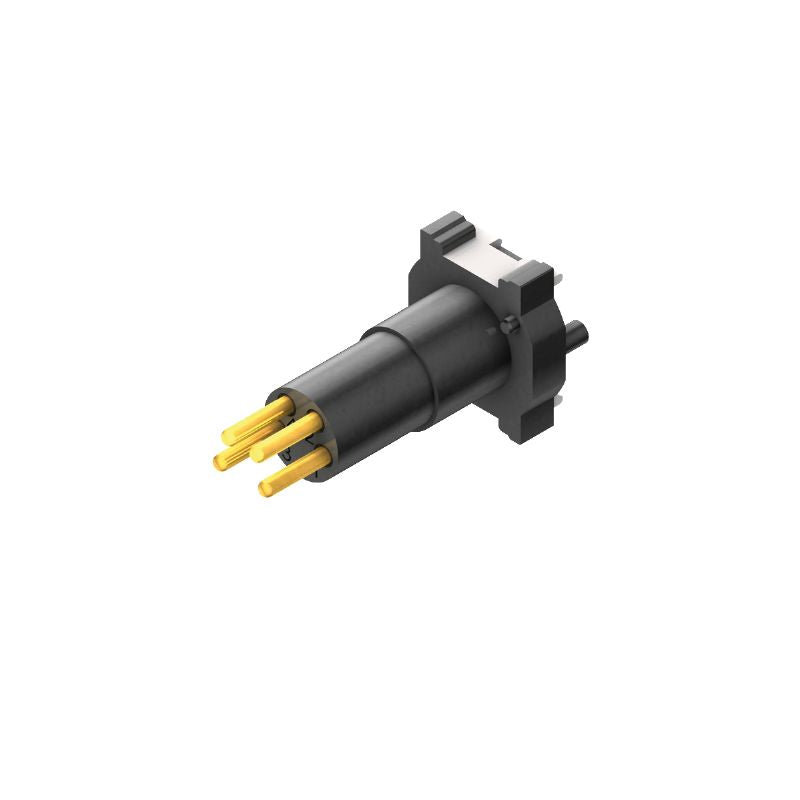

Introducing the SAID-M8S-3-THR, a reliable M8 connector equipped with integrated plugs and a three-pole mounting thread This product meets ROHS compliance and weighs only 24 grams It operates effectively with a nominal voltage of 60 V and a current rating of 4 A, functioning seamlessly across a temperature range from -25 to 95 degrees Celsius Crafted from LCP for strength and longevity, the housing ensures lasting performance, while the connection and locking nut are constructed from nickel-plated copper alloys for added durability.

With an IP67 protection rating, this connector is highly versatile for various applications requiring a robust and weather-resistant design The contact surface is gold-plated, guaranteeing secure electrical connections, and it is designed to withstand a minimum of 100 plugging cycles.

Features and Benefits:

•Gold contact surface for enhanced conductivity.

•Robust IP67 protection level.

•Rated for a wide temperature range from -25 to 95 °C.

•Durable housing made from LCP material.

•Compliance with ROHS.

•Lightweight at only 2.4 grams.

Specifications:
