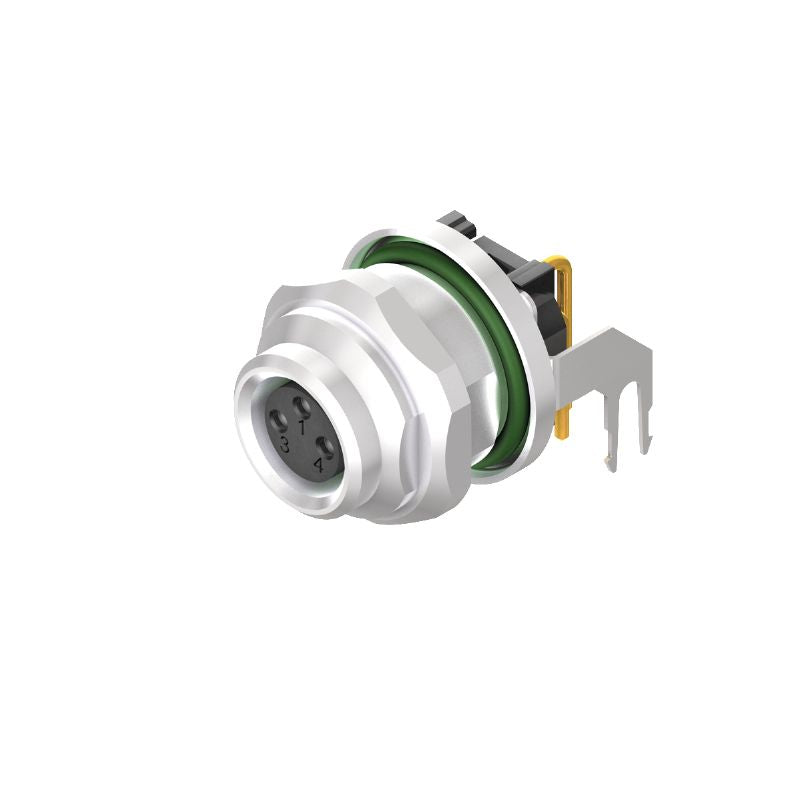

2424250000 - M8 IP67 Connector with M12 Thread and 3 Poles (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M8 PCB plug-in connector, a reliable solution for your connectivity needs This connector features built-in plugs and a sturdy M12 mounting thread alongside three functional poles Crafted with compliance to ROHS standards, it weighs only 14 grams, making it lightweight yet robust With an impressive temperature tolerance ranging from -30 to 80 degrees Celsius and a protection rating of IP67, it is designed to withstand challenging environments.

Rear panel mounting is made easy, thanks to its nickel-plated CuZn housing and gold contact surface, ensuring excellent performance and durability in various applications.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Environmental compliance with Lead 7439-92-1.

•Rear panel mounting type.

•Shield connection enabled.

•Designed for a nominal current of 4 A.

•Plugging cycles rated at over 100.

Specifications:
