Product Information

Description:

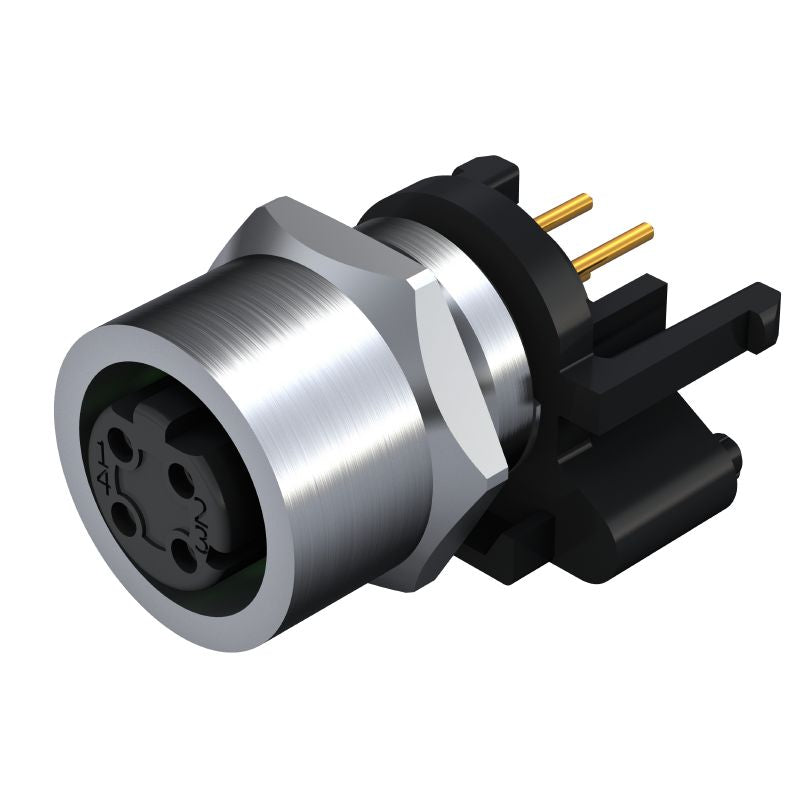

Introducing the SAIE-M12BD-4-F10TL, a versatile M12 connector equipped with a built-in plug This connector comes with a four-pole configuration and is designed to offer a dependable electrical connection suitable for a range of applications Its M12 mounting thread ensures easy installation and secure attachment, making it an excellent choice for your connection needs.

Features and Benefits:

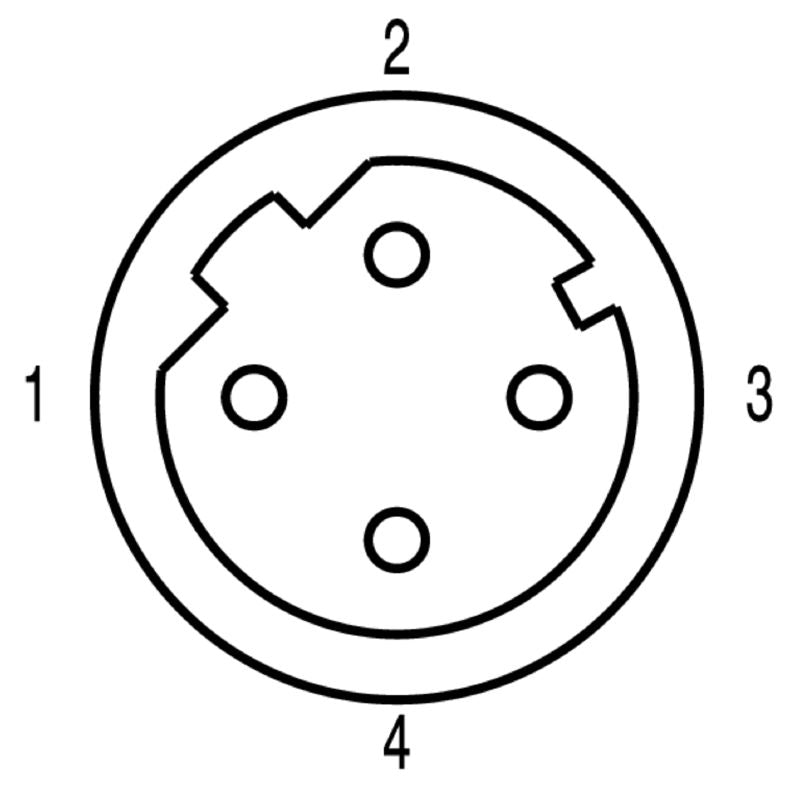

•D-coded for specific coding.

•Nickel-plated housing for improved durability.

•Front mounting design for easy installation.

•IP67 protection degree ensuring dust and water resistance.

•Can withstand a temperature range from -30 to 80 °C.

•Rated for a nominal voltage of 250 V.

•Capable of handling a nominal current up to 4 A.

•High insulation resistance at 100 MΩ.

•Has a significant number of plugging cycles of at least 100.

Specifications:

Number of poles	4

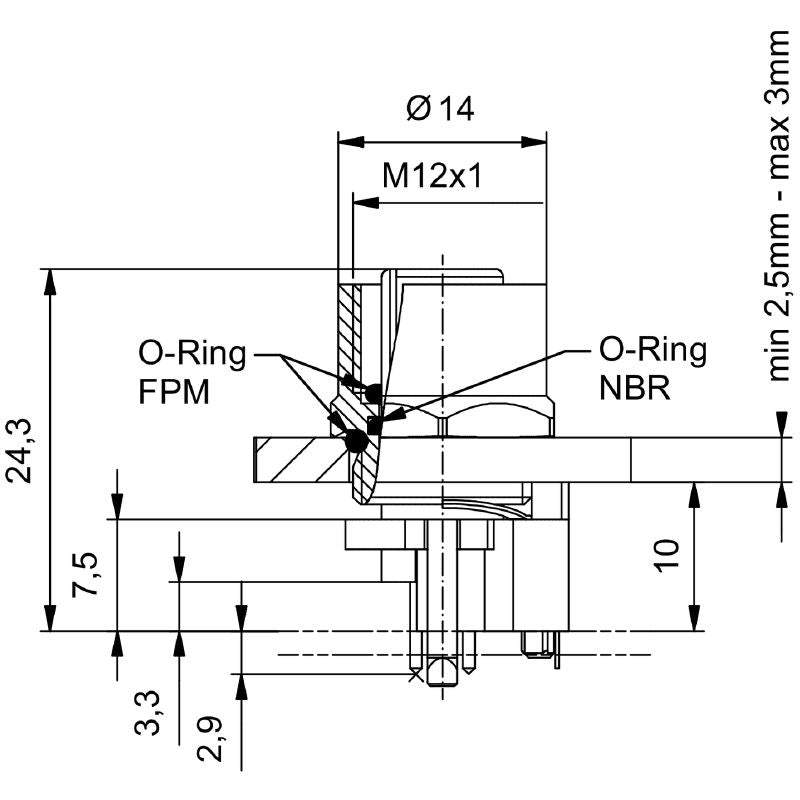

Mounting thread	M12
Nominal voltage	250 V
Rated current	4 A
Temperature range	-30…80 °C
Protection degree	IP67
Contact surface	Au (Gold)
Contact material	Cu-alloy
Lock nut material	Nickel-plated CuZn
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Housing main material	CuZn, nickel-plated
Tightening torque	M12: 0.8 Nm
Mounting torque max	1.2 Nm
Mounting onto the PCB	Dip solder
