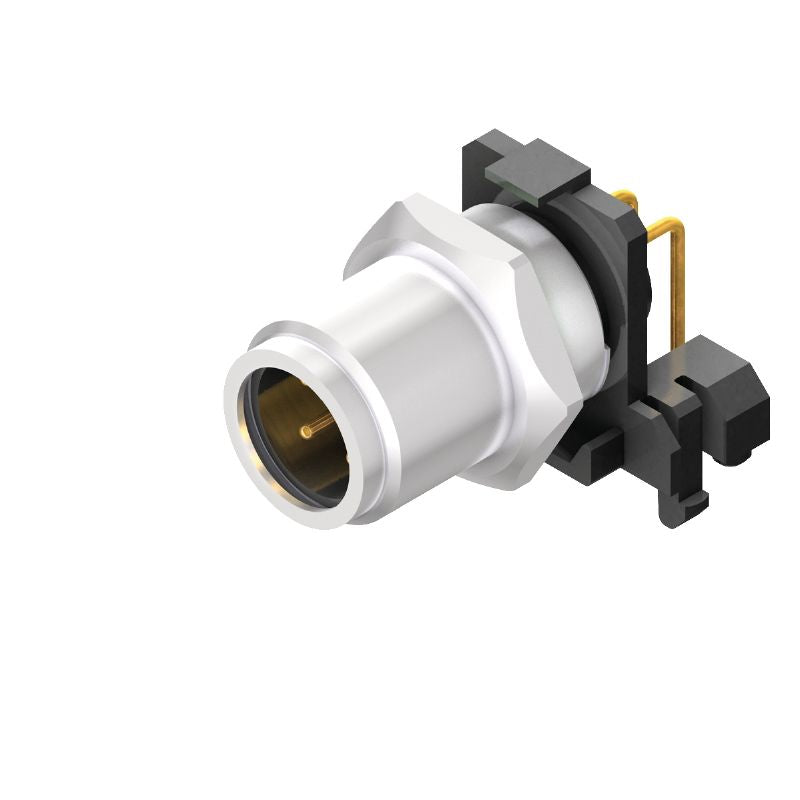

2423870000 - M12 Connector, 5-Pole Plug with Mounting Thread (Pack of 10)

2423870000 - M12 Connector, 5-Pole Plug with Mounting Thread (Pack of 10)

SKU: 2423870000   Download PDF

Select a Variant:
  • 2423870000 - M12 Connector, 5-Pole Plug with Mounting Thread (Pack of 10)
Qty:
Now $76.62   Web pricing policy
BEFORE   $0.00 Now $76.62 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the versatile M12 connector, equipped with integrated plugs and a mounting thread with a size of M12 This connector features a total of 5 poles, ensuring reliable connectivity for various applications While the cable length is not specified, you can trust in its quality, as it adheres to RoHS standards and carries an exemption in its environmental status Please note that it contains the hazardous substance lead (7439-92-1) in compliance with REACH regulations.

Perfect for those who need a dependable connection in their setups.

Features and Benefits:

    •A-coded housing design.

    •Front mounting type.

    •IP67 protection degree.

    •Compatible with a nominal voltage of 60 V and rated voltage of 250 V (4-pole) / 60 V (5-pole).

    •Rated current of 4 A and nominal current of 4 A.

    •Plugging cycles rated at least 100.

    •Insulation resistance of 100 MΩ.

Specifications:

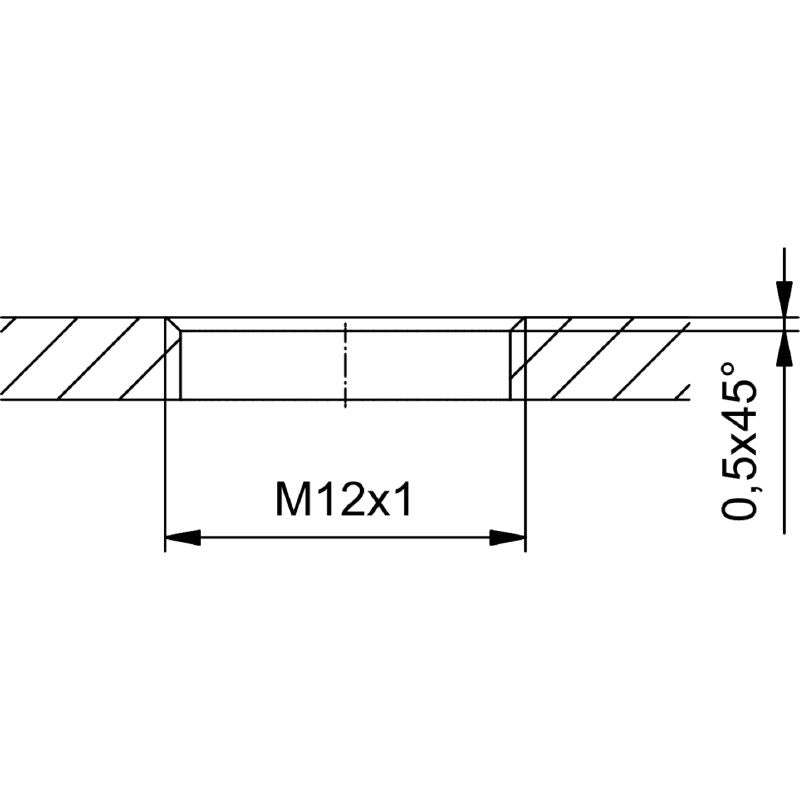

 Mounting thread M12
 Number of poles 5
 Shield connection Yes
 Temperature range -30…80 °C
 Contact surface Au (Gold)
 Housing main material CuZn, nickel-plated
 Tightening torque M12: 0.8 Nm
 Mounting torque (max) 1.2 Nm
 Pollution severity 3 (2 within the sealed area)
 Contact material Cu-alloy
 Lock nut material Nickel-plated CuZn
