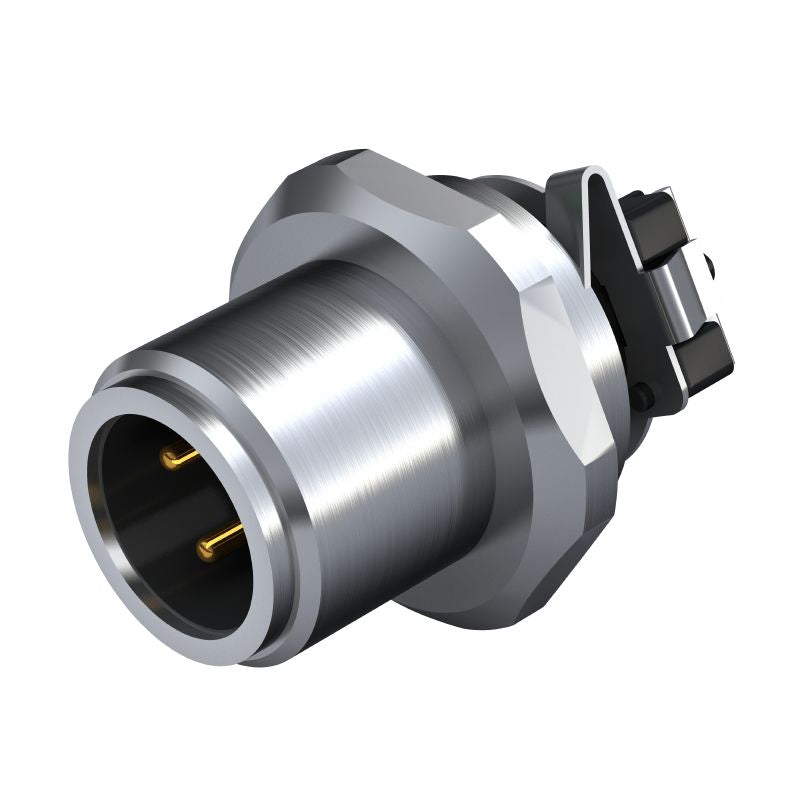

2423830000 - M12 5-Pole Connector with IP67, 250V, M14 Thread (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this versatile connector equipped with built-in M12 plugs and a M14 mounting thread, featuring a robust 5-pole design It efficiently manages a nominal current of 4A and operates at a rated voltage of 250V for its 4-pole setup and 60V for the 5-pole configuration With a wide temperature range of -30 to 80 °C, this connector is crafted for durability and reliability Additionally, its IP67 protection rating ensures it is resistant to dust and water, making it ideal for various applications.

Features and Benefits:

•Compliant with RoHS exemption.

•Nickel-plated housing.

•Gold contact surface.

•SMD solder connection for mounting onto PCB.

•Insulation resistance of 100 MΩ.

•More than 100 plugging cycles.

•Cu-alloy contact material.

Specifications:
