2423390000 - IP67 M12 Connector with 5 Poles and Nickel-Plated Housing (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

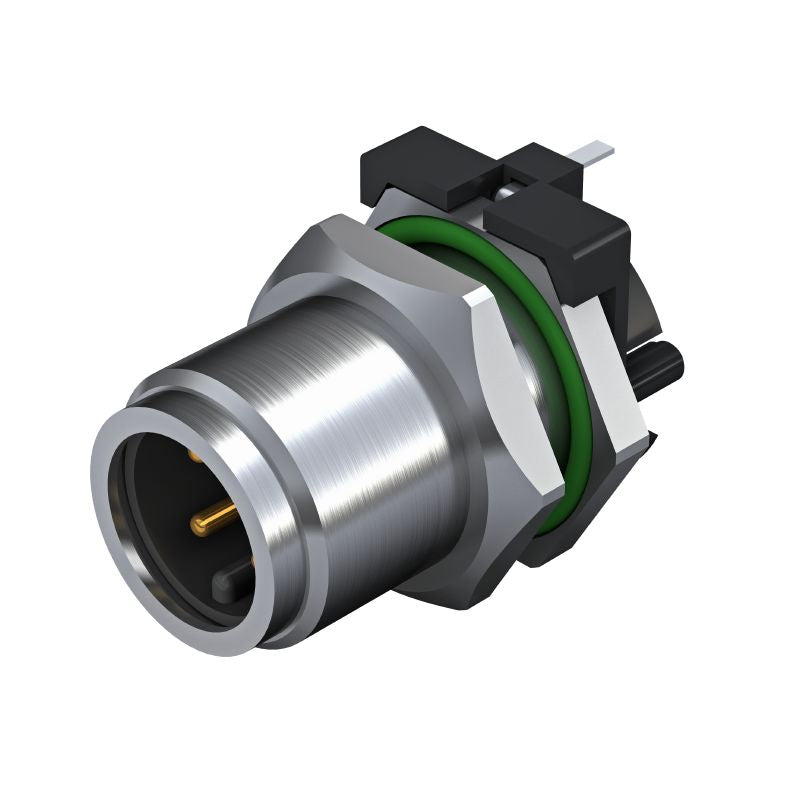

Introducing the robust M12 connector, featuring integrated plugs and a convenient M12 mounting thread This connector is designed with 5 poles and meets RoHS standards, showcasing a durable nickel-plated housing Ideal for rear panel installation, it accommodates connections with a nominal voltage of 60 V and a rated voltage of 250 V for 4-pole setups It is capable of handling a nominal current of 4 A and functions efficiently within a temperature range of -30 to 80 degrees Celsius.

With an IP67 rating, this connector is both dust-tight and capable of withstanding water immersion up to a specified depth The contact material is crafted from copper alloy with a gold-plated finish, offering a long lifespan with a minimum of 100 plugging cycles for enhanced reliability.

Features and Benefits:

•Nickel-plated housing surface.

•Designed for rear panel mounting.

•Supports a nominal voltage of 60 V.

•Rated for up to 250 V (4-pole) and 60 V (5-pole).

•Rated current of 4 A.

•Temperature range of -30 to 80 °C.

•IP67 protection for dust and water.

•Contact material is copper alloy with gold plating.

•Minimum 100 plugging cycles.
