2422980000 - IP67 M8 Socket Connector, 4 Poles, M10 Thread (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

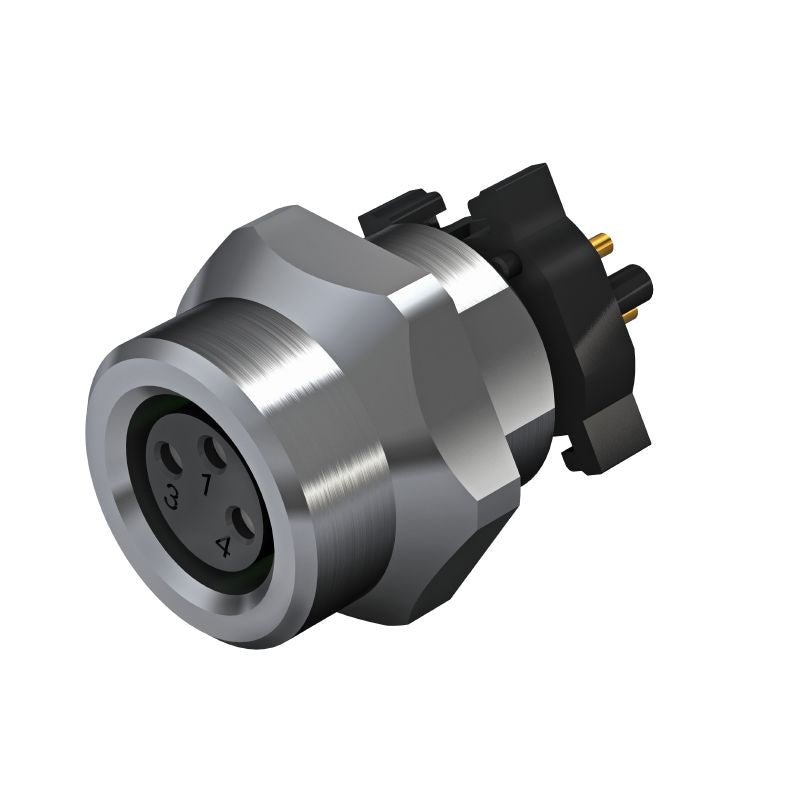

Discover the reliable M8 socket connector with integrated plugs, designed for seamless connectivity Featuring an M10 mounting thread, this connector accommodates four poles with ease Weighing in at just 976 grams, it adheres to ROHS standards, ensuring safety and environmental compliance With a nominal voltage of 30 V and a rated current capacity of 4 A, its robust construction offers an IP67 protection degree, making it suitable for a variety of challenging environments.

Features and Benefits:

•Nickel-plated housing.

•Rear panel mounting type.

•Plugging cycles ≥ 100.

•Insulation resistance of 100 MΩ.

•Temperature range from -30 to 80 °C.

•No shield connection.

Specifications:
