2423600000 - M12 5-Pole PCB Connector, IP67, Front Mount, Gold Contacts (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

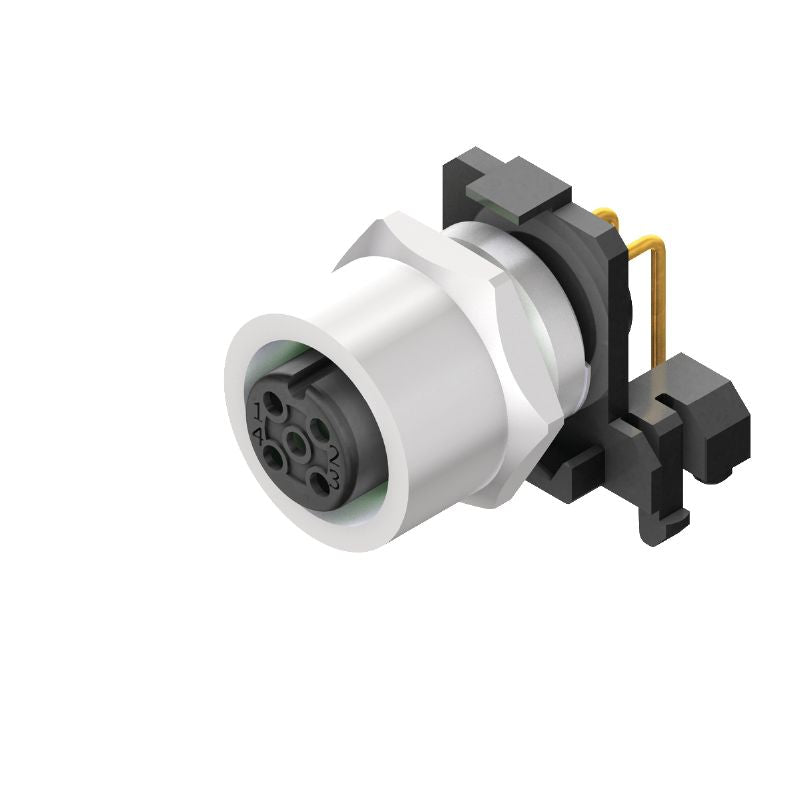

Introducing the SAIEW-M12B-5-FTL PCB plug-in connector, expertly designed to meet your connectivity needs This robust connector features an M12 mounting thread and comes equipped with built-in plugs that accommodate 5 poles It offers impressive specifications with a nominal voltage of 60V and a maximum rated voltage of 250V for 4-pole configurations, alongside the 60V capacity for 5-pole applications.

Built to withstand varied environments, this connector operates effectively within a temperature range of -30°C to 80°C and is rated IP67, providing excellent dust and water resistance The device's clever assembly allows for easy front mounting, while its gold contact surface ensures dependable connectivity For secure installation, it supports a coupling with a tightening torque of 08 Nm and is engineered to endure a minimum of 100 plugging cycles, making it both durable and reliable for your projects.

Features and Benefits:

•Front mounting type.

•IP67 protection degree.

•Gold contact surface for reliable connections.

•Temperature range of -30 to 80 °C.

•Constructed from nickel-plated CuZn material.

•Insulation resistance of 100 MΩ.

•Designed to withstand a minimum of 100 plugging cycles.

Specifications:
