2423140000 - M12 A-Coded Connector, 5 Poles, IP67, 13mm Height (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 connector, a reliable and efficient component engineered with built-in plugs This connector includes a mounting thread of M14 and features a total of 5 poles for versatile applications Weighing in at approximately 7885 grams, it meets RoHS compliance standards and showcases an A-coded configuration The sturdy housing boasts a nickel-plated surface and incorporates an M12 socket design, ensuring robustness.

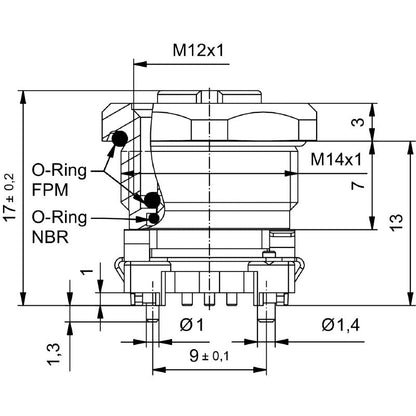

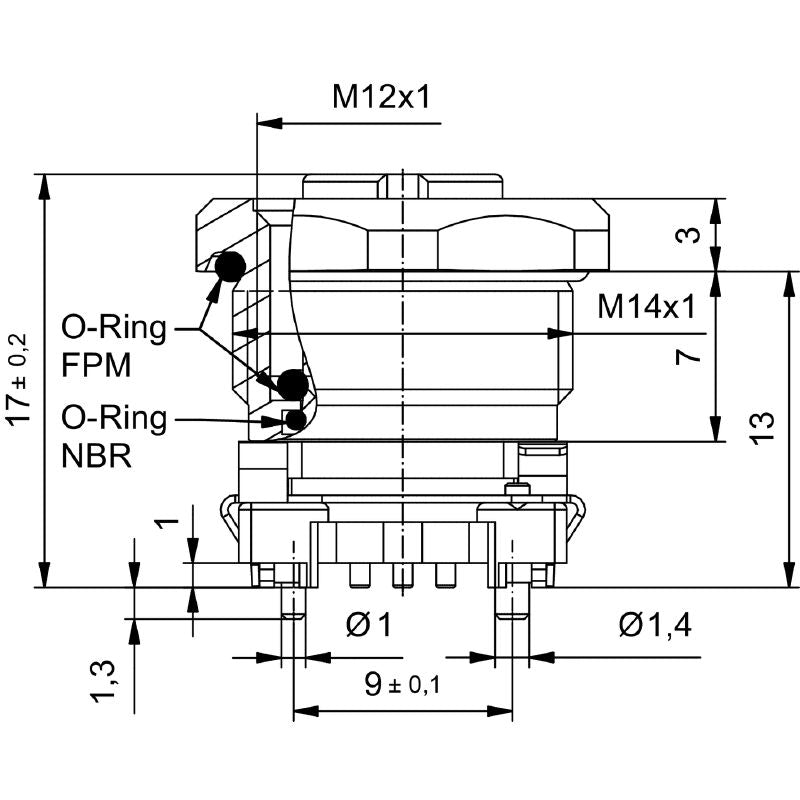

With a compact installation height of just 13 mm, it also offers a shield connection for enhanced protection Operating efficiently at a nominal voltage of 60 V and rated for up to 250 V for 4-pole configurations, this connector can handle 60 V for 5-pole and 30 V for 8-pole setups It accommodates a nominal current capacity of 4 A and operates seamlessly within a temperature range of -30 to +80 °C Further enhancing its functionality, the device is rated IP67 for protection against dust and water ingress.

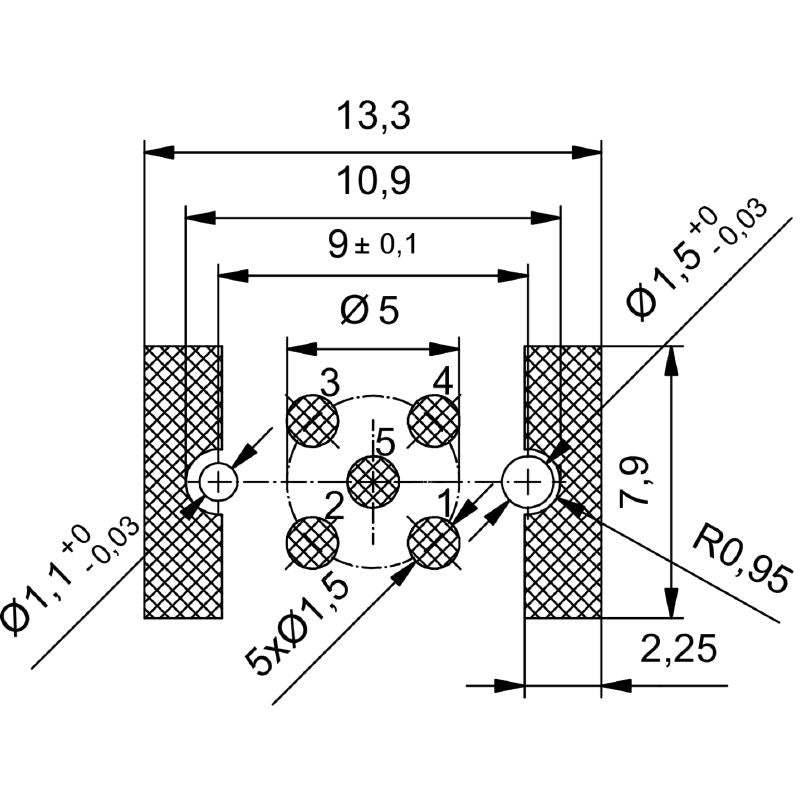

The gold-finished contact surfaces, combined with a housing made from nickel-plated copper-zinc alloy, ensure excellent conductivity and durability The assembly features M12 connections and requires a tightening torque of 08 Nm, with a maximum mounting torque of 12 Nm For PCB installation, an SMD solder connection is necessary With an impressive insulation resistance of 100 MΩ, this connector is rated for a minimum of 100 plugging cycles, making it a robust choice for your electronic needs.

Features and Benefits:

•M12 connector with built-in plugs.

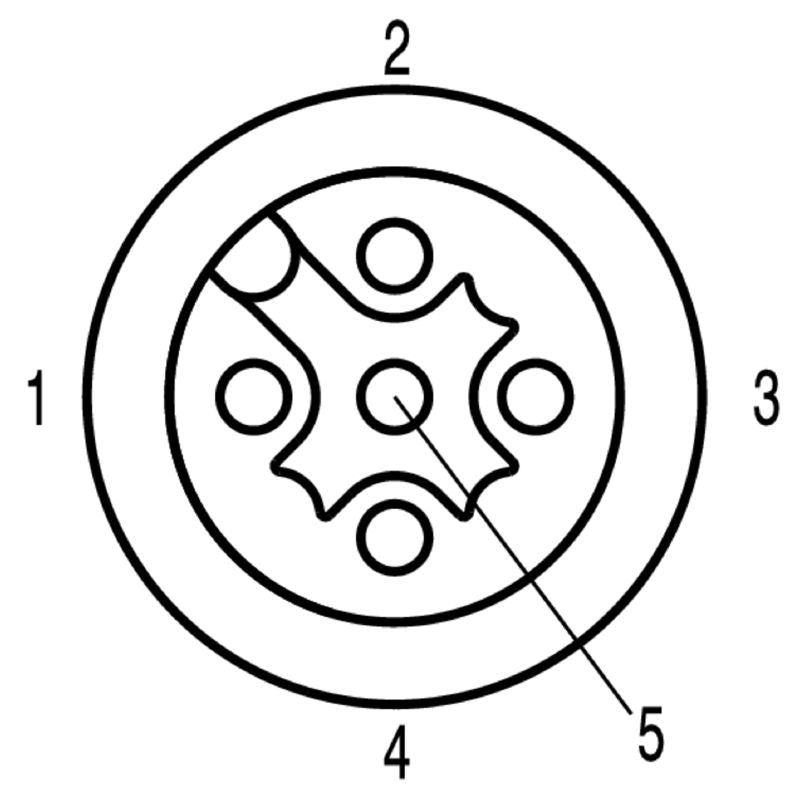

•A-coded design for security.

•Nickel-plated housing surface for enhanced durability.

•IP67 protection degree ensures resistance to dust and water.

•Capable of operating in wide temperature ranges.

•High insulation resistance rating.

•Suitable for a minimum of 100 plugging cycles.

Specifications:
