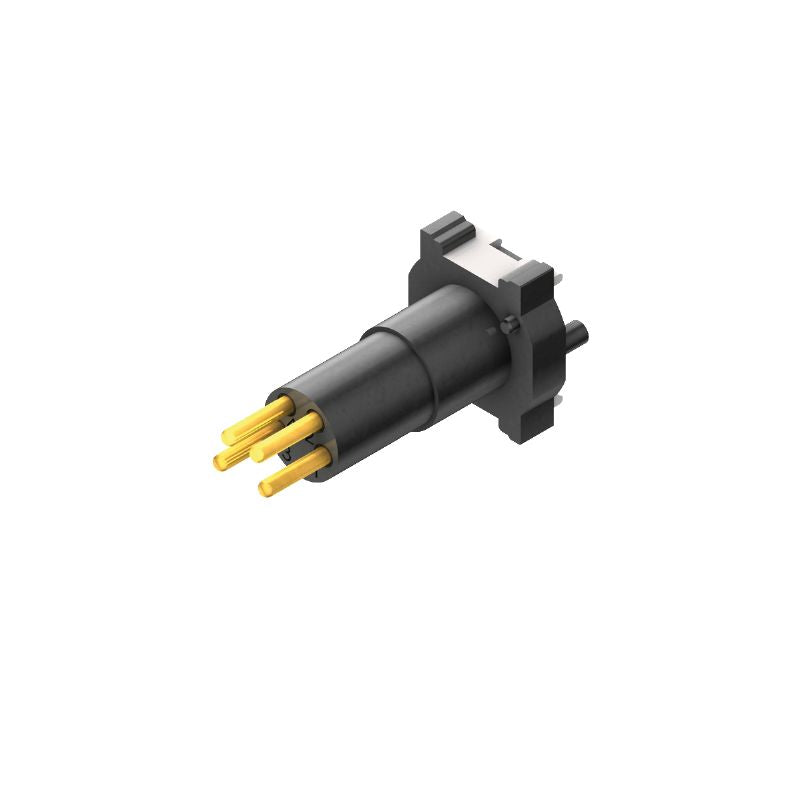

2424030000 - 5-Pole M8 Built-In Connector with Mounting Thread (Pack of 25)

2424030000 - 5-Pole M8 Built-In Connector with Mounting Thread (Pack of 25)

SKU: 2424030000   Download PDF

Select a Variant:
  • 2424030000 - 5-Pole M8 Built-In Connector with Mounting Thread (Pack of 25)
Qty:
Now $86.03   Web pricing policy
BEFORE   $0.00 Now $86.03 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Upgrade your connections with this built-in M8 connector, featuring a robust mounting thread With a 5-pole configuration, it meets RoHS compliance standards, ensuring safety and reliability This connector is ideal for various applications that require dependable electrical connectivity.

Features and Benefits:

    •B-coded coding for easy identification.

    •Protection degree IP67, ensuring resistance to dust and water.

    •Rated voltage of 60 V for 3-pole and 30 V for other configurations.

    •Nominal current of 4 A, providing stable electrical performance.

    •Able to handle a temperature range from -25 to 95 °C.

    •Produced with a Cu-alloy contact material for durability.

    •Gold contact surface for enhanced conductivity.

    •Compatible with M8 connection threads.

Specifications:

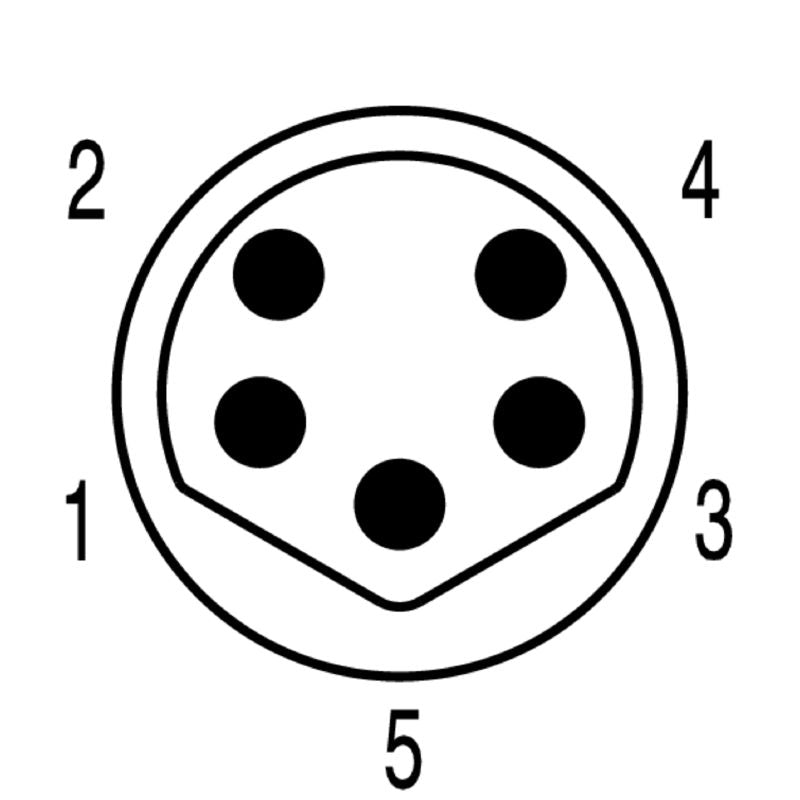

 Number of poles 5
 Rated voltage 60 V (3-pole) / 30 V (4-,5- and 8-pole)
 Nominal current 4 A
 Temperature range -25…95 °C
 Protection degree IP67
 Plugging cycles ≥ 100
 Contact material Cu-alloy
 Contact surface Au (Gold)
 Housing main material LCP
 Connection thread M8
 Tightening torque M8: 0.5 Nm
 UL 94 flammability rating V-0
