2421980000 - M12 5-Pole Plug Connector, IP67, PG 9, -30 to 80 °C (Pack of 10)

SKU: SKU: 2421980000 Download PDF

Select a Variant:

2421980000 - M12 5-Pole Plug Connector, IP67, PG 9, -30 to 80 °C (Pack of 10)

SET THE QTY:

Now $82.50 Web pricing policy

~~BEFORE $0.00~~ Now $82.50 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

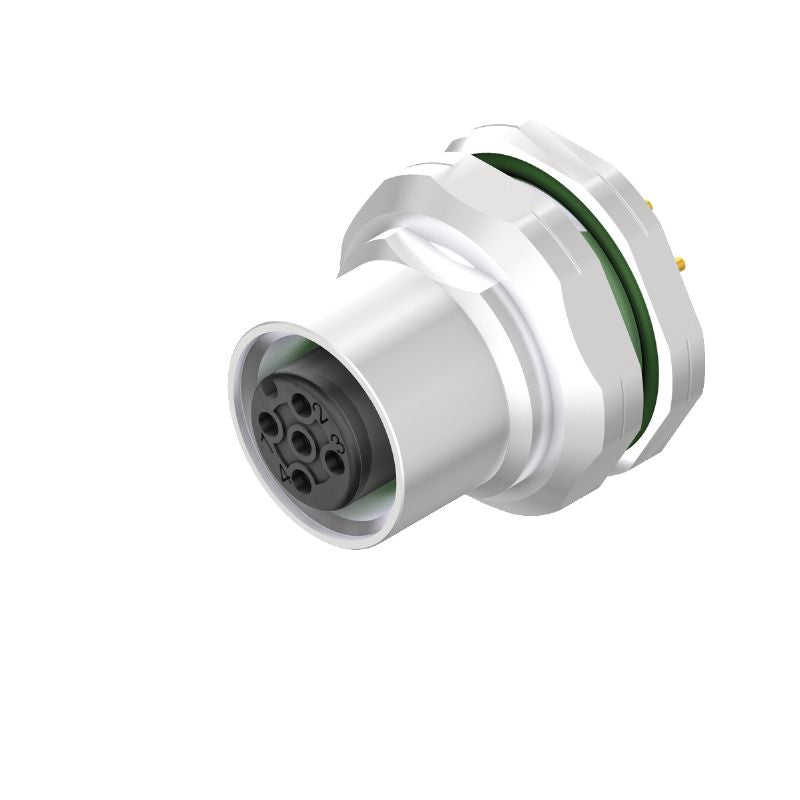

Introducing the M12 built-in plug connector, featuring a PG 9 mounting thread and equipped with 5 poles, perfect for rear panel installation This connector operates efficiently in extreme temperatures ranging from -30 to 80 °C It supports a rated current of 4 A and has a nominal voltage of 60 V Crafted for tough environments, it boasts an IP67 protection rating, ensuring resistance to dust and water.

The connector's quality is enhanced with a gold-plated contact surface and a nickel-plated CuZn housing for reliable performance.

Features and Benefits:

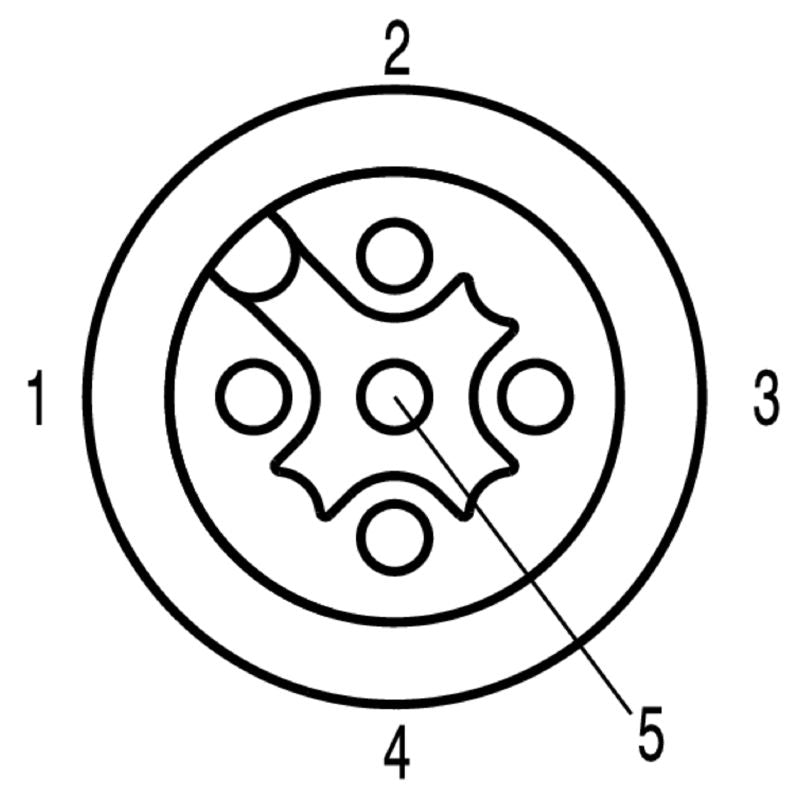

•A-coded coding for compatibility.

•No shield connection for easy installation.

•Durable construction with up to 100 plugging cycles.

•High insulation resistance of 100 MΩ.

Specifications:

Mounting thread	PG9
Number of poles	5
Nominal current	4 A
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Temperature range	-30…80 °C
Protection degree	IP67
Contact material	Cu-alloy
Contact surface	Au (Gold)
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Tightening torque	M12: 0.8 Nm
Mounting torque	max.: 1.2 Nm
