2422200000 - IP67 Rated M8 Socket Connector, 3 Poles, 9mm Length (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

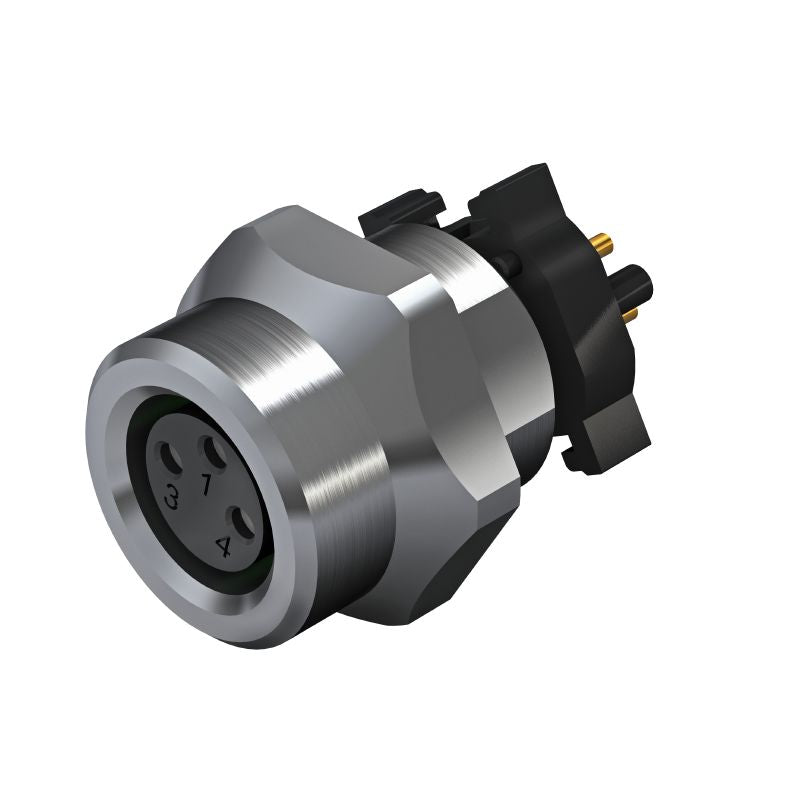

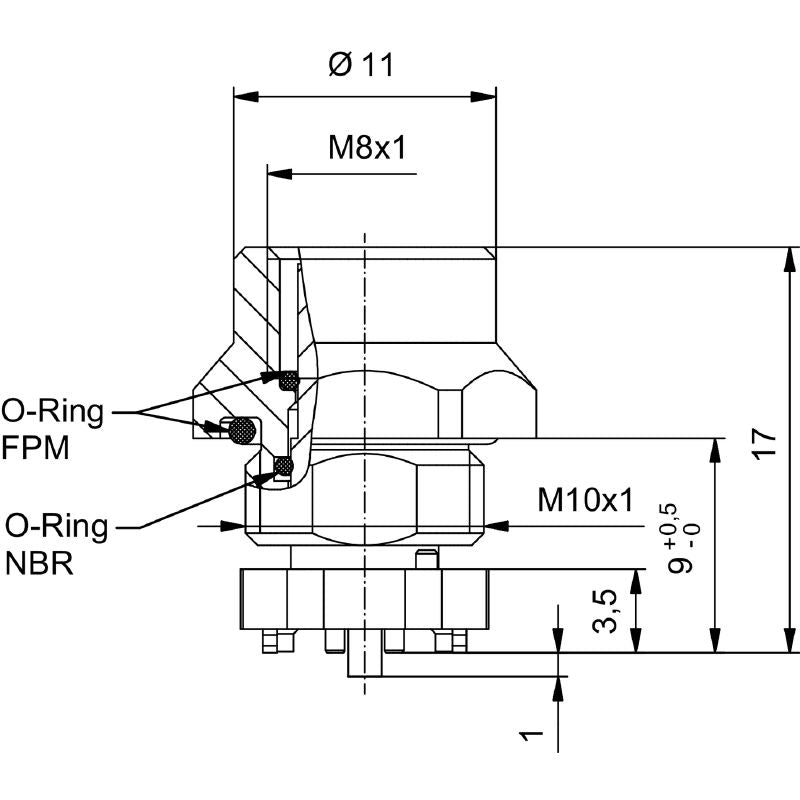

Introducing the SAIE-M8B-3-F9SMT, a highly functional M8 socket connector that incorporates built-in plugs for seamless installation Designed with an M10 mounting thread, this connector boasts a compact length of just 9 mm for a low-profile setup With three poles, it operates efficiently at a nominal voltage of 60 V and a current capacity of 4 A Crafted from CuZn with a durable nickel-plated housing, it meets RoHS compliance standards for environmental safety.

Featuring an IP67 protection degree, this connector is adaptable for a variety of applications, ensuring reliability in challenging conditions.

Features and Benefits:

•Nickel-plated housing.

•Front mounting type.

•No shield connection.

•Reliable plugging cycles with a durability of ≥ 100.

•Insulation resistance is high at 100 MΩ.

•Temperature range suitable from -30 to 80 °C.
