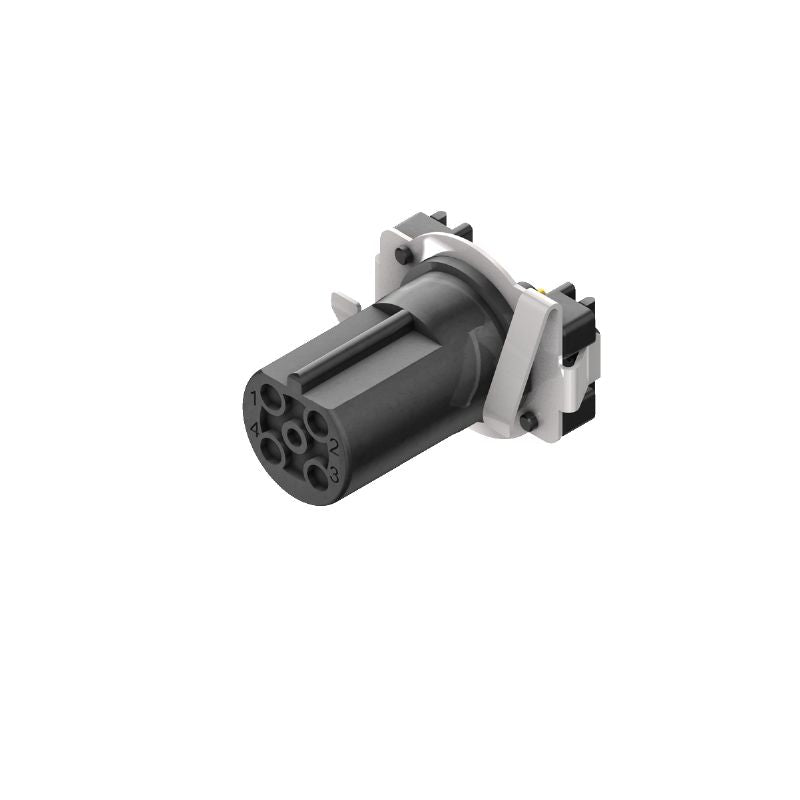

2422240000 - Durable M12 Plug, 5 Poles, IP67, RoHS Compliant (Pack of 25)

SKU: SKU: 2422240000 Download PDF

Select a Variant:

2422240000 - Durable M12 Plug, 5 Poles, IP67, RoHS Compliant (Pack of 25)

SET THE QTY:

Now $115.39 Web pricing policy

~~BEFORE $0.00~~ Now $115.39 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Engineered for optimal performance, this M12 5-pole built-in plug meets RoHS compliance standards It boasts a robust M12 connection thread and offers a shield connection for added reliability Constructed from LCP, the housing ensures long-lasting durability across diverse applications Operating at a nominal voltage of 60V and supporting a rated current of 4A, it is designed to endure extreme temperatures ranging from -25 to 95 degrees Celsius.

With an impressive IP67 protection rating, this plug is well-equipped for challenging conditions, and it can handle over 100 plugging cycles, making it a reliable choice for your needs.

Features and Benefits:

•Built-in M12 plugs.

•5 poles.

•LCP housing material.

•M12 connection thread.

•Gold contact surface.

•IP67 protection degree.

•Rated for more than 100 plugging cycles.

Specifications:

Nominal voltage	60 V
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	4 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Temperature range	-25…95 °C
Protection degree	IP67
Plugging cycles	≥ 100
Contact material	Cu-alloy
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
UL 94 flammability rating	V-0
Coding	A-coded
Housings	M12 socket
Contact surface	Au (Gold)
Tightening torque	M12: 0.8 Nm
Pollution severity	3 (2 within the sealed area)
