2422310000 - M12 Connector with 4 Poles, IP67, 5.5mm Height (Pack of 10)

Description:

Introducing a highly functional connector designed for robust connectivity This connector features integrated plugs for M12 connections and a mounting thread of M 16 x 15, equipped with 4 poles for optimal connectivity Identified by order number 2422310000, it meets RoHS compliance and adheres to exemptions against RoHS regulations, containing lead classified as a substance of concern under REACH guidelines.

Designed with a B-coded configuration, the housing boasts a durable nickel-plated surface, ensuring longevity The M12 socket housing facilitates effortless installation with a height of just 55 mm With a nominal voltage rating of 250 V and a current capacity of 4 A, this connector is versatile for a range of applications Its temperature tolerance spans from -30°C to 80°C, allowing it to perform reliably in varying environments.

Additionally, with an IP67 rating, it is safeguarded against moisture and dust, making it ideal for demanding conditions The contact surfaces are gold-plated to guarantee dependable connections, while the primary housing material is crafted from a solid copper-zinc alloy.

Features and Benefits:

•B-coded for easier identification.

•Nickel-plated housing for durability.

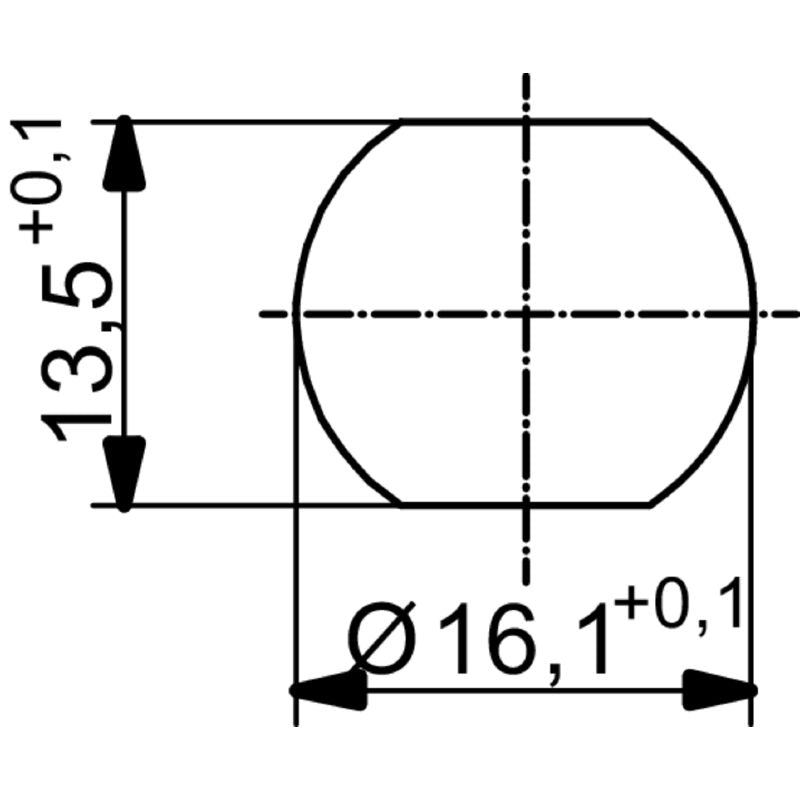

•Mounting thread is M 16 x 1.5.

•IP67 rated for dust and water resistance.

•Can withstand temperatures from -30 to 80 °C.

•Over 100 plugging cycles possible.

Specifications:
