2422040000 - Built-in M12 Connector, 8 Poles, PG9 Thread, 5.5mm Height (Pack of 10)

Description:

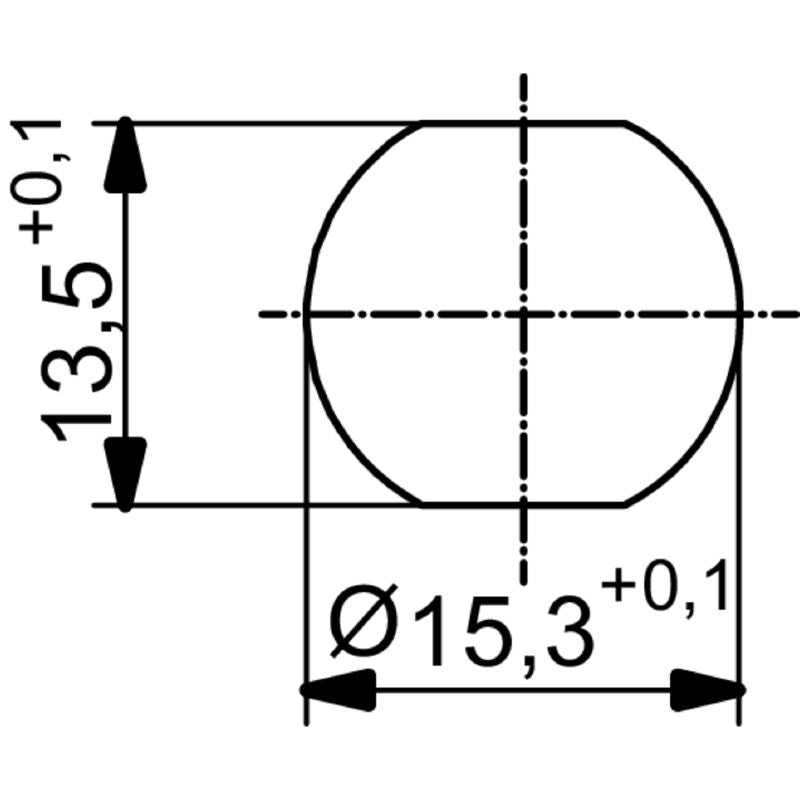

Introducing a versatile built-in M12 plug that showcases a PG9 mounting thread and is designed with 8 poles With a compact installation height of approximately 55 mm, this connector is ideal for rear panel mounting applications It meets varying electrical specifications, accommodating a nominal voltage of 30 V, while supporting rated voltages of 250 V for 4 poles, 60 V for 5 poles, and 30 V for 8 poles.

The connector reliably carries nominal currents of 2 A, with a rated current of 4 A for 4 and 5 poles, and 2 A for the 8-pole configuration Built to withstand temperatures from -30 to 80 °C, it features an IP67 protection rating, ensuring robust performance in challenging environments Additionally, it is designed to endure at least 100 plugging cycles, making it a reliable choice for your electrical needs.

Features and Benefits:

•M12 socket housing.

•No shield connection.

•Includes Au (Gold) contact surface.

•Constructed from CuZn material, nickel-plated.

•M12 connection thread.

•Tightening torque of M12 at 0.8 Nm.

•Maximum mounting torque at 1.2 Nm.

•Insulation resistance of 100 MΩ.

•Pollution severity with a rating of 3.
