2422250000 - IP67 Nickel-Plated Connector with 8 Poles, PG 9 Thread (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

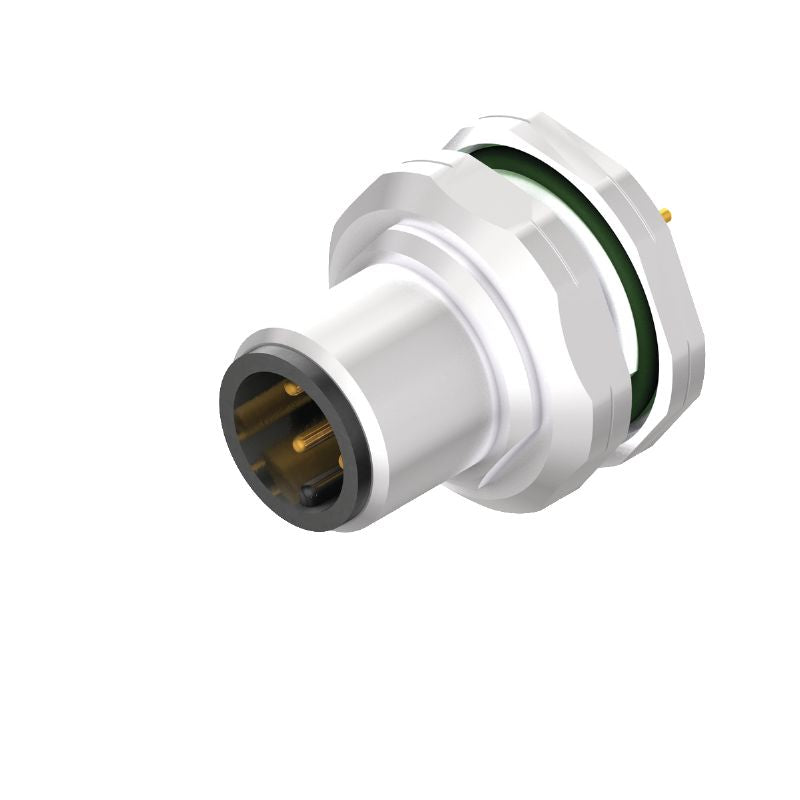

Introducing the SAIE-M12S-8-H12TL-PG9 connector, a premium choice for reliable electrical connections This connector comes with integrated plugs and features a PG 9 mounting thread for easy installation With a total of 8 poles, it supports a nominal voltage of 30 V, while offering rated voltages of 250 V for 4-pole setups, 60 V for 5-pole, and 30 V for 8-pole configurations This RoHS-compliant product meets rigorous environmental standards and includes a SCIP identification number for tracking.

The compact design stands at an installation height of 12 mm and is made from durable nickel-plated CuZn material It operates effectively in a broad temperature range from -30 to 80 °C and boasts an IP67 rating, ensuring exceptional resistance to dust and water ingress Additionally, it is built to withstand at least 100 plugging cycles, making it a robust and dependable solution for your electrical needs.

Features and Benefits:

•Compliant with RoHS.

•Protection degree of IP67.

•Rear panel mounting type.

•Temperature range of -30 to 80 °C.

•Constructed from nickel-plated CuZn.

•Supports plugging cycles of ≥ 100.

Specifications:
