Product Information

Description:

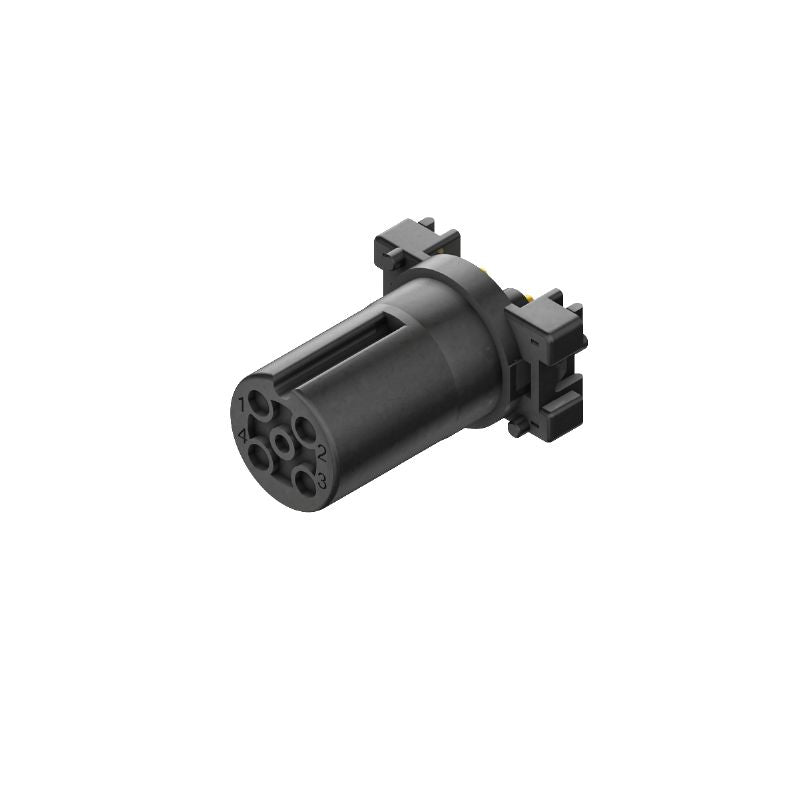

Introducing the SAID-M12B-5-9SMT connector, engineered for tough applications with its robust M12 housing and integrated plugs This connector features a versatile five-pole setup, operating efficiently in a temperature range from -25 to 95 °C Capable of handling a nominal current of 4 A, it boasts a rated voltage of 250 V across four poles and 60 V on the fifth With an IP67 protection rating, it is designed to provide reliable connectivity even in demanding environments.

Plus, it complies with RoHS standards and is rated for a minimum of 100 plugging cycles, ensuring longevity and safety in your applications.

Features and Benefits:

•A-coded housing for compatibility.

•LCP as the main housing material enhances durability.

•Gold contact surface for better conductivity.

•IP67 rating ensures protection against dust and water.

•Nickel-plated components for corrosion resistance.

Specifications:

Order No.	2422120000
GTIN (EAN)	4050118430950

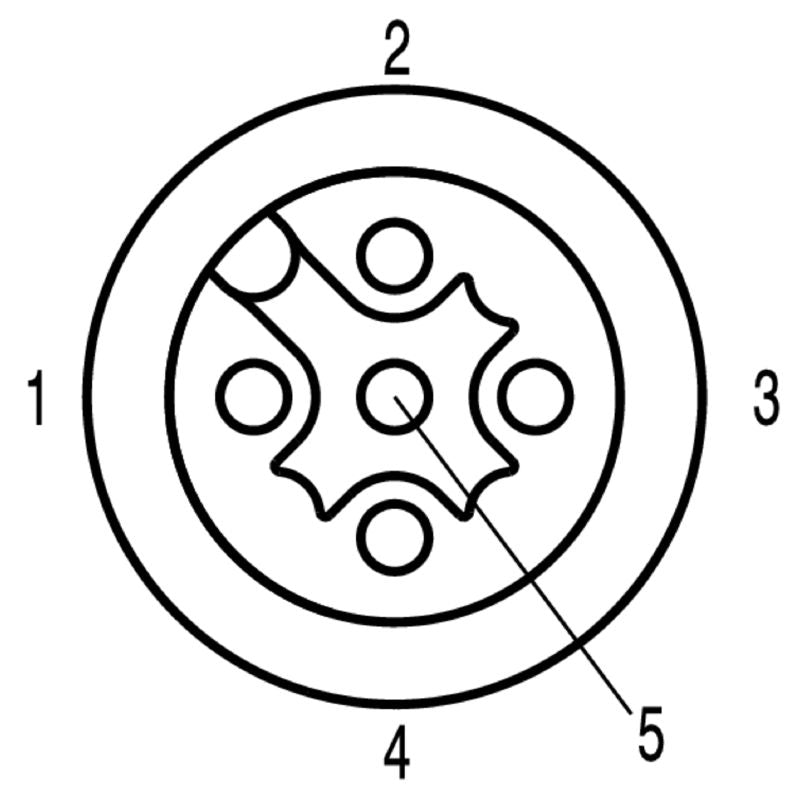

Number of poles	5
Nominal voltage	60 V
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	4 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Temperature range	-25…95 °C
Protection degree	IP67
Contact material	Cu-alloy
Contact surface	Au (Gold)
Lock nut material	Nickel-plated CuZn
Plugging cycles	≥ 100
Tightening torque	M12: 0.8 Nm
