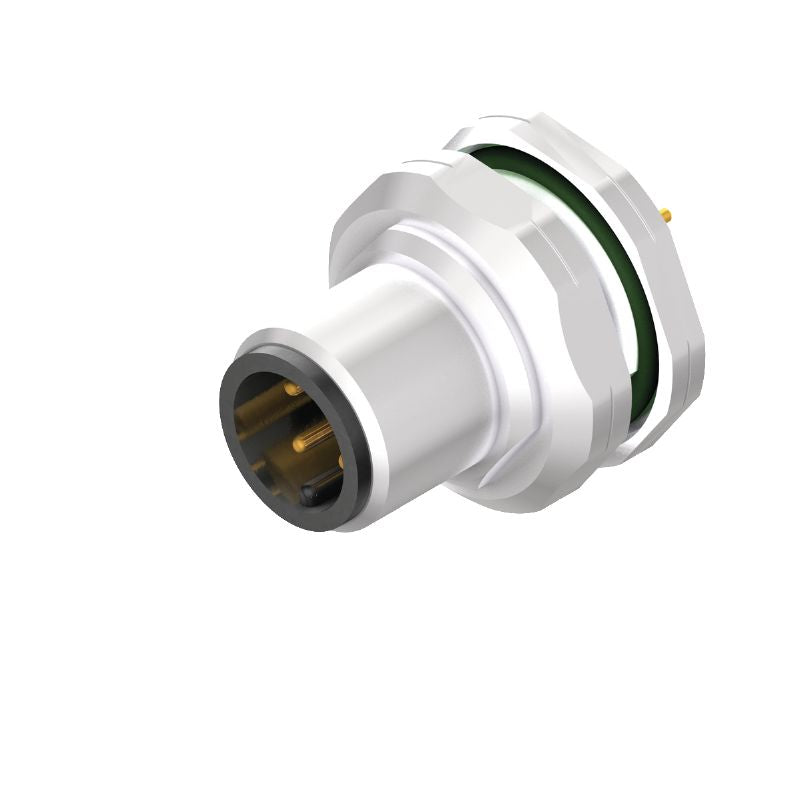

2422130000 - IP67 M12 Connector with 4 Poles and PG 9 Mounting (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this versatile connector, engineered with four poles to suit a range of electrical uses It features integrated M12 plugs and is equipped with a PG 9 mounting thread, making it perfect for rear panel installation Adhering to RoHS regulations, this connector is designed with environmental safety in mind With a rated voltage of 250V and a current capacity of 4A, it offers reliable performance.

The robust build withstands extreme temperatures from -30°C to 80°C and is rated IP67, providing exceptional protection against dust and water intrusion.

Features and Benefits:

•Rear panel mounting type.

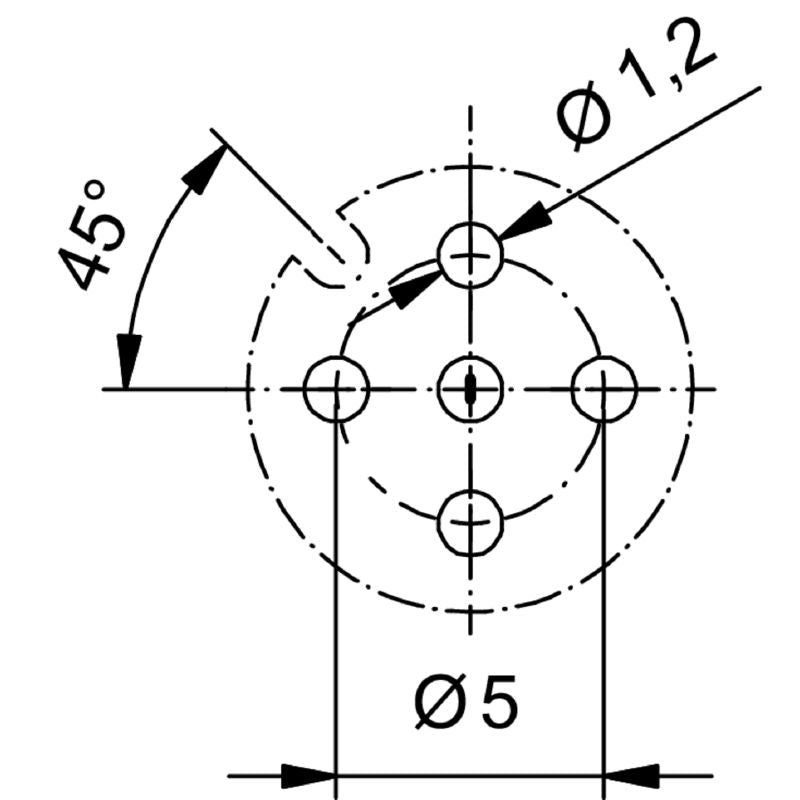

•A-coded housing for ensuring correct orientation.

•Suitable for a temperature range from -30°C to 80°C.

•IP67 protection degree for water and dust resistance.

•Plugging cycles rated for at least 100 uses.

Specifications:
