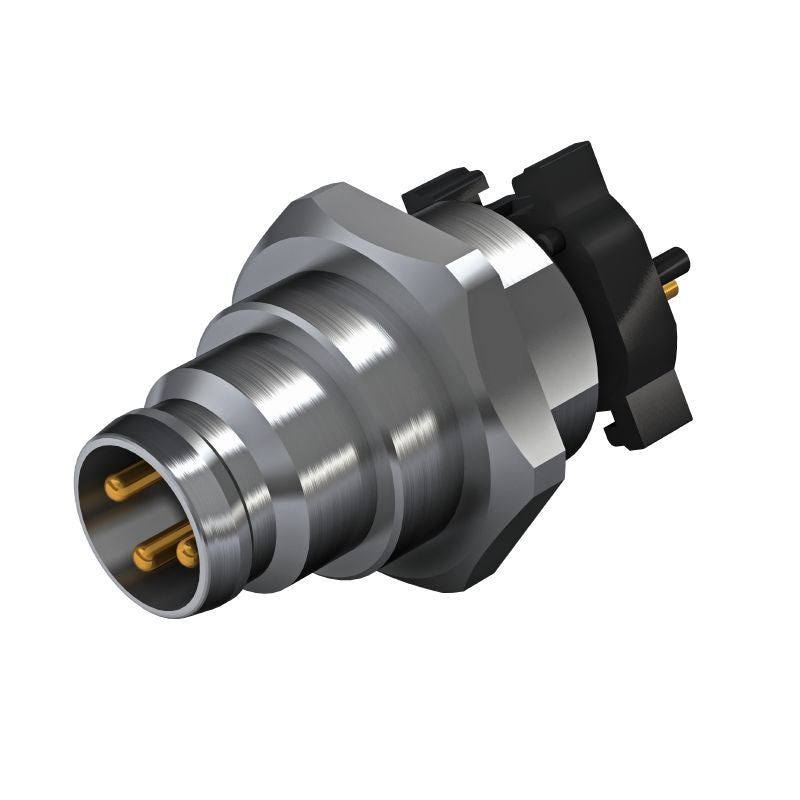

2422290000 - M8 3-Pole PCB Connector with IP67 Rating, 60V (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this robust PCB plug-in connector equipped with integrated M8 connectors and an M10 mounting thread With three poles, this connector is RoHS compliant, including an exemption Its nickel-plated housing not only enhances durability but also contributes to its sleek appearance Rated for a nominal voltage of 60V, this connector can operate effectively within a temperature range of -30 to 80 degrees Celsius.

Featuring an IP67 protection rating, it offers outstanding resistance to both dust and water Designed for front mounting, it includes an M8 connection thread, an impressive insulation resistance of 100 MΩ, and is capable of enduring over 100 plugging cycles.

Features and Benefits:

•Nickel-plated housing surface.

•IP67 protection degree.

•Rated current of 4A.

•Suitable for front mounting.

•Gold contact surface.

•Plugging cycles of more than 100.

Specifications:
