Description:

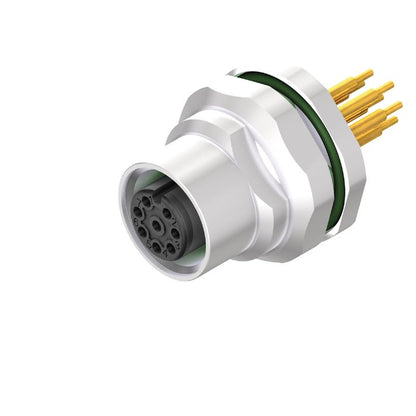

Introducing the SAIE-M12B-8S-H675TL plug connector, engineered for optimal performance in various applications This connector features an M12 socket configuration, complemented by a robust M16 mounting thread and 8 poles Designed with a specific cable length to meet diverse functional needs, it also adheres to multiple environmental compliance standards, making it a reliable choice for your connectivity solutions.

Features and Benefits:

•A-coded coding for secure connections.

•Nickel-plated housing surface for durability.

•Rear panel mounting type for convenient installation.

•IP67 protection degree for water and dust resistance.

•Supports a temperature range from -30 to 80 °C.

•Capable of handling plugging cycles of ≥ 100.

Specifications:

Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal voltage	30 V
Nominal current	2 A
Rated current	4 A (5-pole) / 2 A (8-pole)
Installation height	6.75 mm
Insulation resistance	100 MΩ
Pollution severity	3 (2 within the sealed area)
Contact material	Cu-alloy
Contact surface	Au (Gold)
Housing main material	CuZn
Lock nut material	Nickel-plated CuZn
Connection thread	M12
Tightening torque	M12: 0.8 Nm
Mounting torque max	1.2 Nm

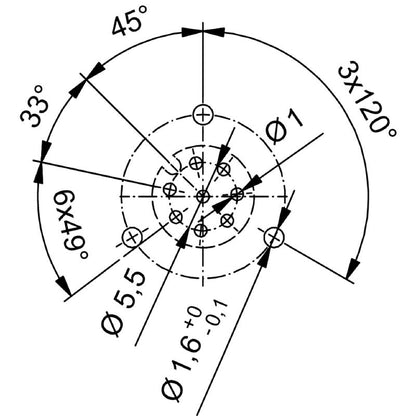

Mounting onto the PCB	THT solder connection
Shield connection	Yes
Plugging cycles	≥ 100
