2422190000 - M12 5-Pole Plug with IP67 Rating & 12mm Height (Pack of 10)

Description:

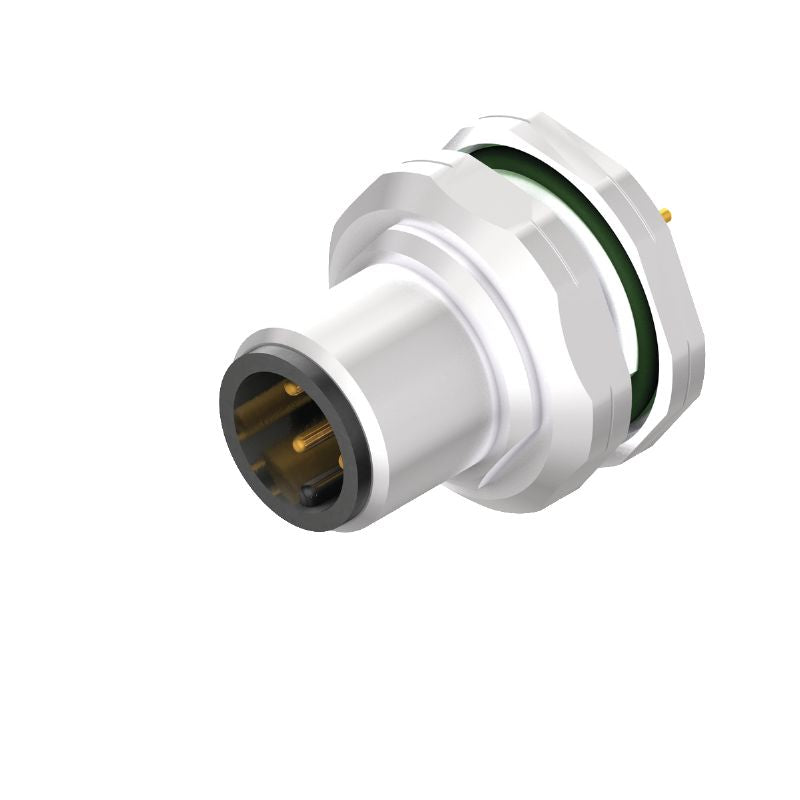

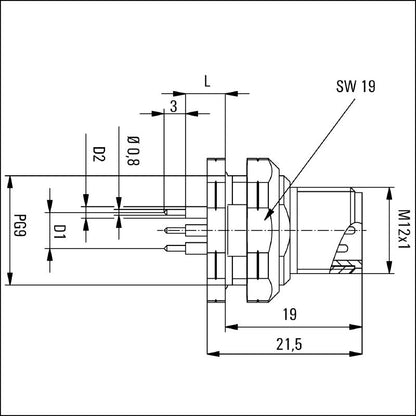

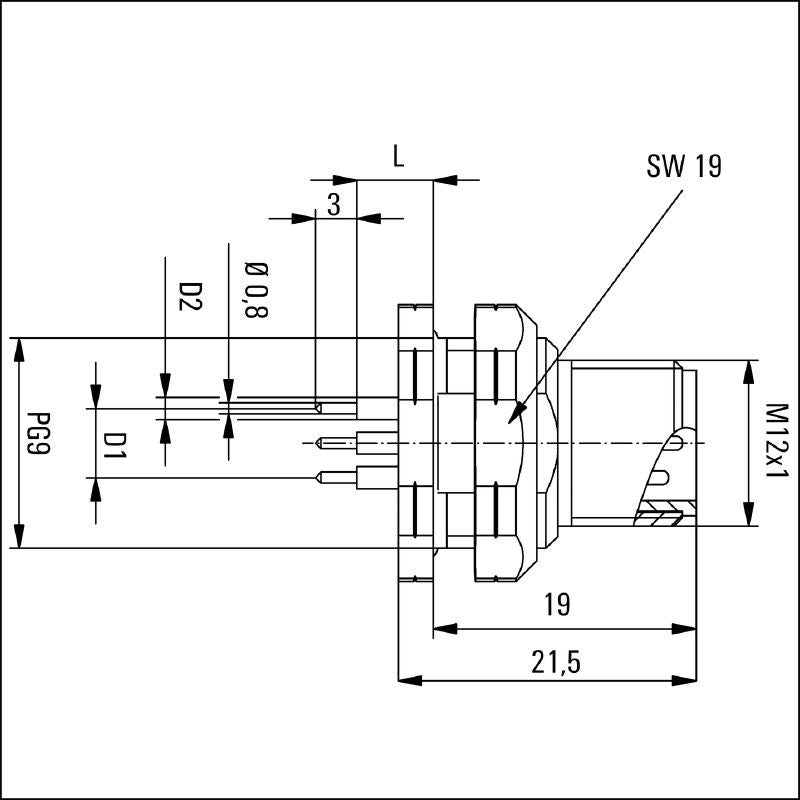

Introducing the SAIE-M12S-5-H12TL-PG9 built-in plug, designed for robust connectivity This M12 connector features a PG 9 mounting thread and boasts a configuration of 5 poles Compliant with RoHS standards, it measures an installation height of just 12 mm It functions effectively under a nominal voltage of 60 V, with rated voltages of 250 V for 4-pole setups, 60 V for 5-pole, and 30 V for 8-pole configurations.

Capable of accommodating a nominal current of up to 4 A, this connector is rated for extreme conditions ranging from -30 to 80 °C With an IP67 protection rating, it provides exceptional resistance to dust and water ingress The nickel-plated CuZn housing is complemented by gold-plated contact surfaces, ensuring reliable performance and longevity.

Features and Benefits:

•A-coded housing for enhanced identification.

•Rear panel mounting type for easier installation.

•Four pole configurations rated at 4 A and additional configurations for varying needs.

•High insulation resistance of 100 MΩ.

•Suitable for over 100 plugging cycles.

•Nickel-plated CuZn materials for durability.
