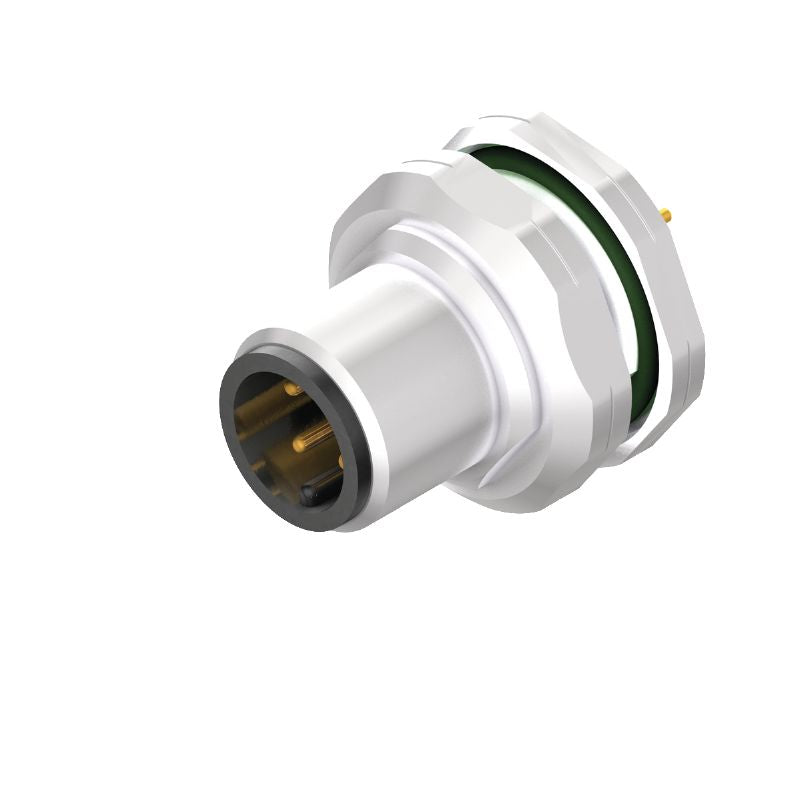

2422220000 - M12 Plug Connector with PG 9 Thread, 8 Poles, 5.5mm Height (Pack of 10)

SKU: SKU: 2422220000 Download PDF

Variant:

2422220000 - M12 Plug Connector with PG 9 Thread, 8 Poles, 5.5mm Height (Pack of 10)

Now $92.22

~~BEFORE $0.00~~ Now $92.22

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 built-in plug connector, designed for seamless integration with a mounting thread of PG 9 This versatile connector supports up to 8 poles and features a sleek installation height of just 55 mm, making it an excellent choice for space-constrained applications Perfect for reliable connections in various setups, this product enhances functionality without compromising on compactness.

Features and Benefits:

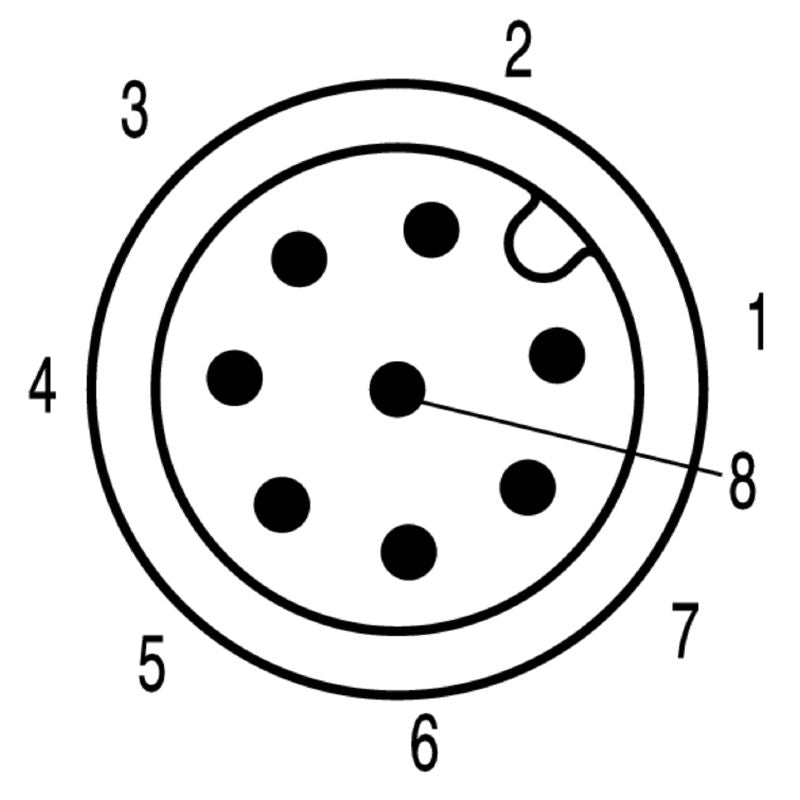

•A-coded housing with M12 pin configuration.

•Rear panel mounting design.

•Protection degree rated at IP67 for high durability.

•Compliant with RoHS regulations.

Specifications:

Nominal voltage	30 V
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	2 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Temperature range	-30…80 °C
Tightening torque	M12: 0.8 Nm
Mounting torque max.	1.2 Nm
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Contact material	Cu-alloy
Contact surface	Au (Gold)
Mounting thread	PG 9
Housing main material	CuZn, nickel-plated
Shield connection	No
Pollution severity	3 (2 within the sealed area)
