2422060000 - M12 4-Pole Connector, IP67, 250V, Gold Contacts (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

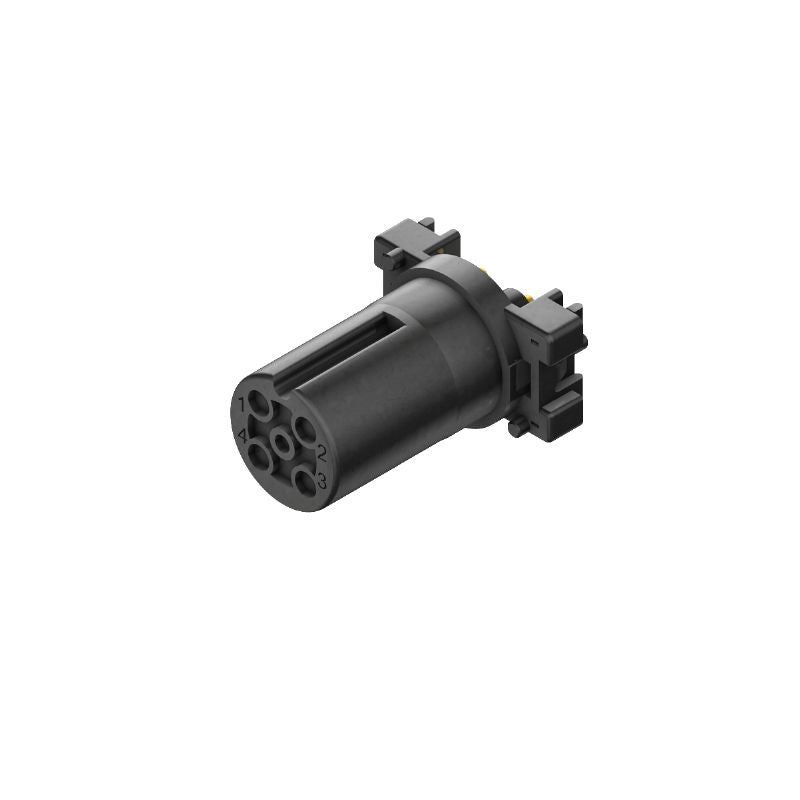

Introducing the SAID-M12B-4-9SMT, a versatile M12 socket connector equipped with integrated plugs and designed for a wide range of applications This connector features a 4-pole configuration and adheres to RoHS standards for safety and environmental compliance With a nominal voltage capacity of 250 V and a nominal current rating of 4 A, it is compatible with both 4 and 5-pole configurations Engineered to perform in challenging conditions, this connector operates effectively within temperatures from -25°C to 95°C and boasts an IP67 rating, ensuring complete protection against dust and water ingress.

It can endure a minimum of 100 plugging cycles, highlighting its durability and reliability The housing is made from high-performance LCP, while the lock nut is crafted from nickel-plated copper zinc Finally, it includes a specific tensioning torque of 08 Nm for secure M12 connections.

Features and Benefits:

•M12 socket connector.

•Compliant with RoHS regulations.

•Gold contact surface.

•Suitable for a temperature range of -25 to 95 °C.

•IP67 protection degree.

•Rated for a nominal voltage of 250 V.

•Endures at least 100 plugging cycles.

Specifications:
