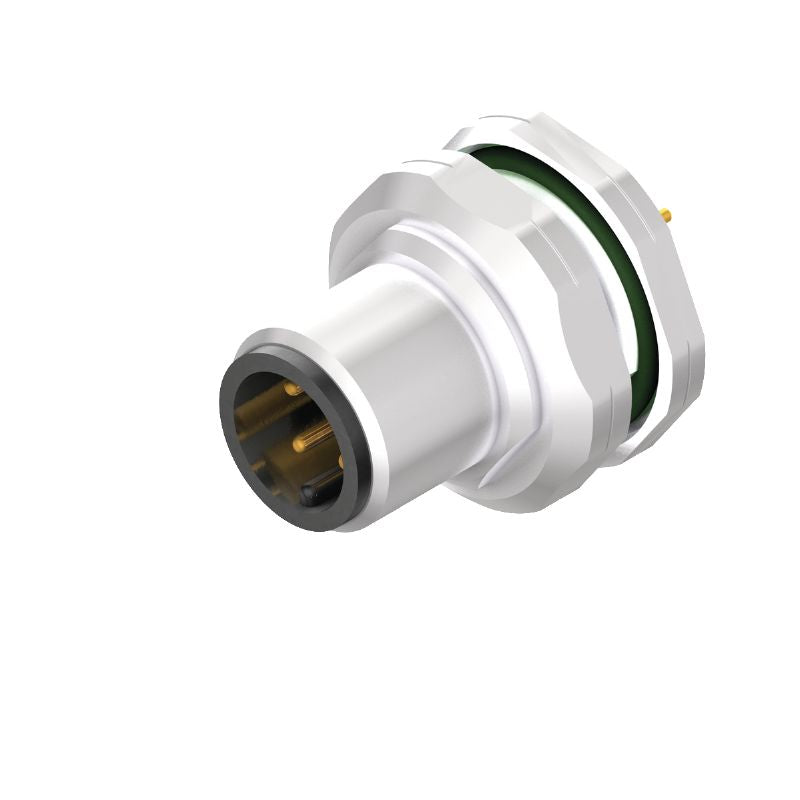

2422100000 - IP67 Rated PG 9 Connector with 5.5mm Height and 4 Poles (Pack of 10)

SKU: SKU: 2422100000 Download PDF

Select a Variant:

2422100000 - IP67 Rated PG 9 Connector with 5.5mm Height and 4 Poles (Pack of 10)

SET THE QTY:

Now $75.34 Web pricing policy

~~BEFORE $0.00~~ Now $75.34 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a versatile connector designed for your mounting needs! This sleek device features built-in plugs and a PG 9 mounting thread, tailored for easy rear panel installations Standing at a compact height of just 55 mm, it’s engineered to withstand a range of temperatures from -30°C to 80°C With an impressive IP67 protection rating, it ensures reliable performance in various environments Weighing in at only 20 g, this connector also includes a gold contact surface for enhanced conductivity and durability, while meeting RoHS compliance and relevant standards.

Perfect for your next project!.

Features and Benefits:

•Rear panel mounting type.

•A-coded housing.

•No shield connection.

•Rated for 250 V with a nominal current of 4 A.

•Insulation resistance of 100 MΩ.

•Can handle over 100 plugging cycles.

Specifications:

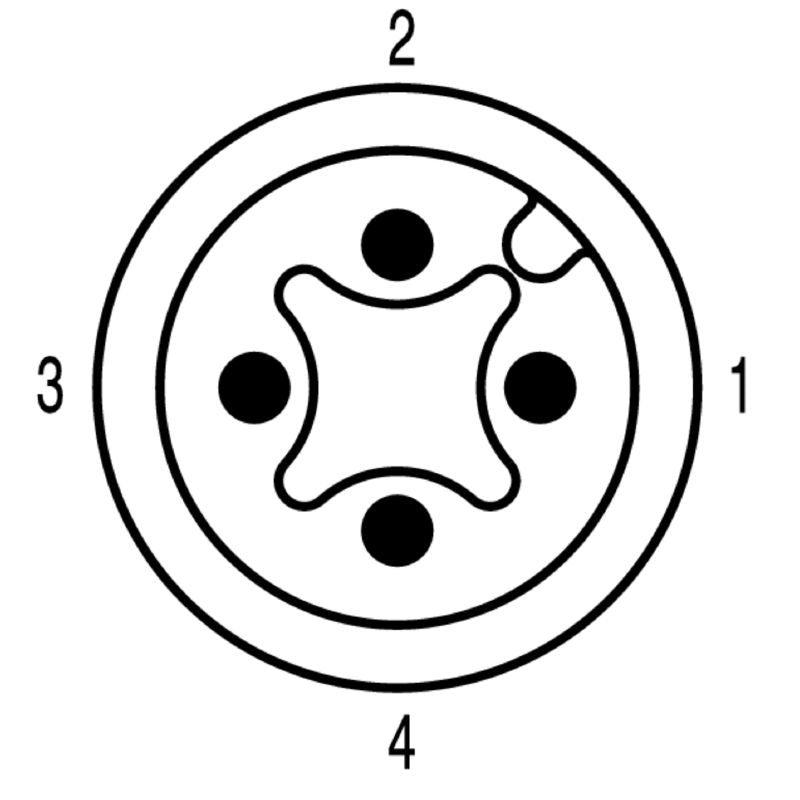

Number of poles	4

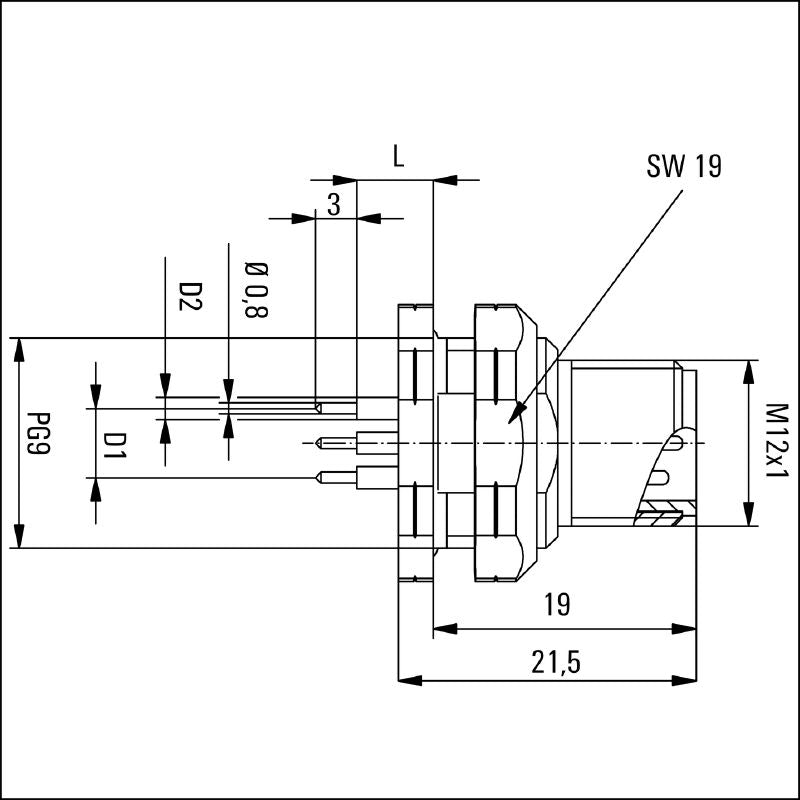

Mounting thread	PG9
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	4 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Temperature range	-30…80 °C
Protection degree	IP67
Contact surface	Au (Gold)
Housing main material	CuZn nickel-plated
Connection thread	M12
Tightening torque	M12: 0.8 Nm
Mounting torque max.	1.2 Nm
Pollution severity	3 (2 within the sealed area)
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
