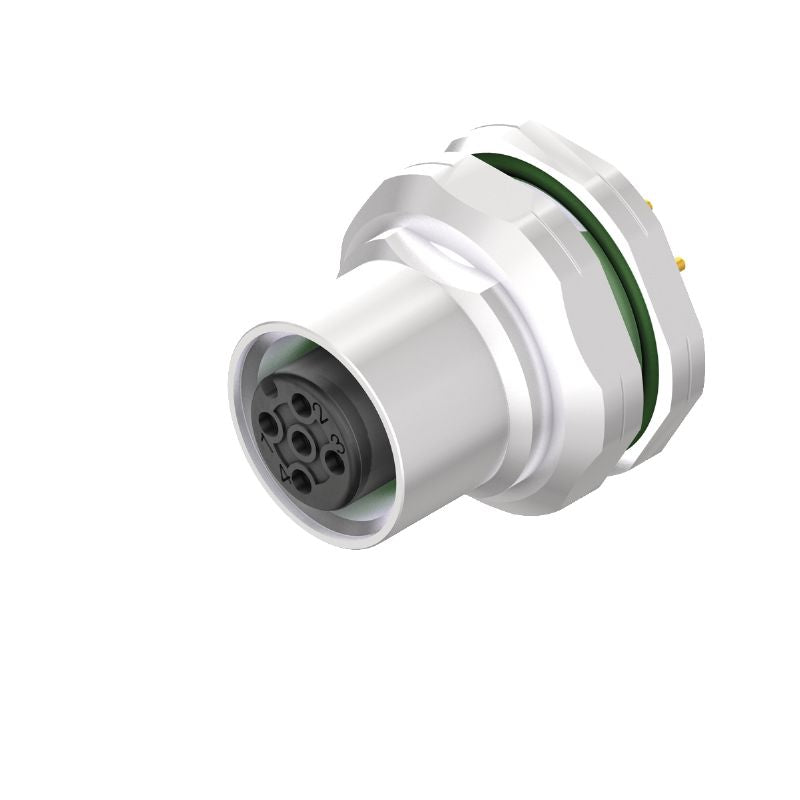

2421950000 - M12 PCB Plug Connector with PG 9 Thread, IP67 Rated (Pack of 10)

2421950000 - M12 PCB Plug Connector with PG 9 Thread, IP67 Rated (Pack of 10)

SKU: 2421950000 Download PDF

Variant:
  • 2421950000 - M12 PCB Plug Connector with PG 9 Thread, IP67 Rated (Pack of 10)
Now $85.07
BEFORE   $0.00 Now $85.07
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover a reliable solution with this M12 configuration connector, which includes integrated plugs and features a PG 9 mounting thread along with four poles Fully compliant with RoHS and meeting REACH standards, this PCB plug-in connector is designed for rear panel installation It operates at a nominal voltage of 250V and supports a current rating of 4A With an impressive temperature range from -30 to 80 degrees Celsius and an IP67 protection rating, this connector is built to withstand challenging environmental conditions.

Features and Benefits:

    •A-coded for secure connections.

    •Designed for rear panel mounting.

    •Complies with RoHS with noted exemptions.

    •High insulation resistance of 100 MΩ.

    •Durable with over 100 plugging cycles.

    •Nickel-plated housing for enhanced durability.

Specifications:

 Mounting thread PG 9

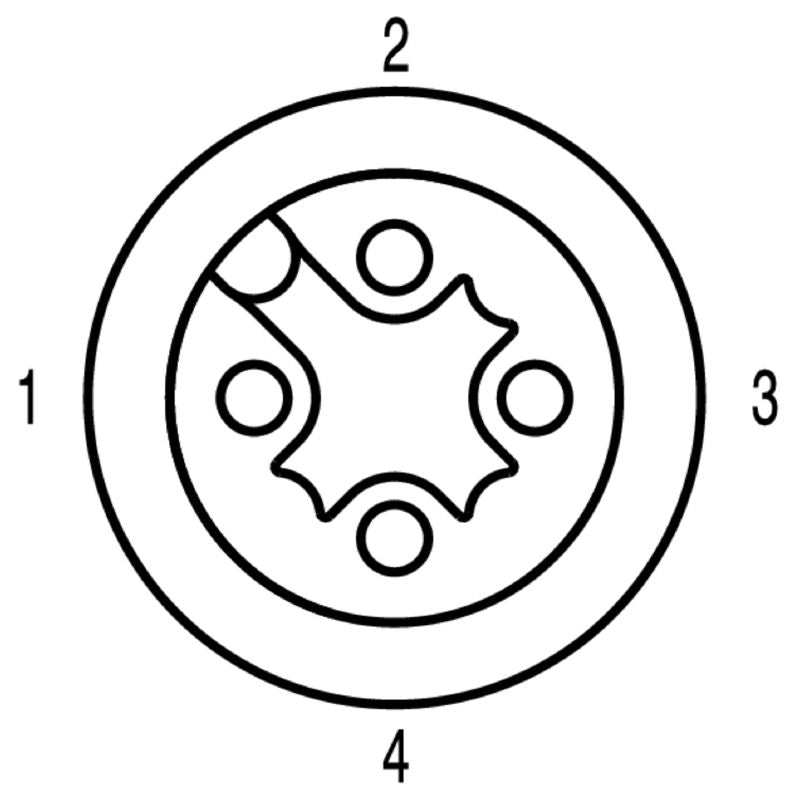

 Number of poles 4
 Nominal voltage 250 V
 Rated voltage 250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
 Nominal current 4 A
 Rated current 4 A (4- and 5-pole) / 2 A (8-pole)
 Temperature range -30…80 °C
 Protection degree IP67
 Contact surface Au (Gold)
 Housing main material CuZn nickel-plated
 Connection thread M12
 Tightening torque M12: 0.8 Nm
 Mounting torque max 1.2 Nm
 Insulation resistance 100 MΩ
 Pollution severity 3 (2 within the sealed area)
 Plugging cycles ≥ 100
 Contact material Cu-alloy
 Lock nut material Nickel-plated CuZn
 Material of the flange-mounted housing Nickel-plated CuZn
