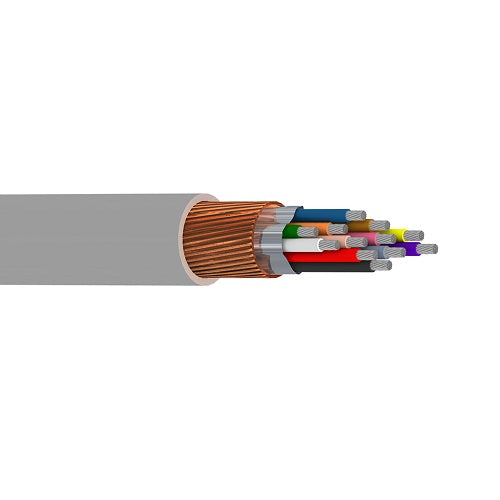

Belden 76012WS 28 AWG 12 Conductor 7x36 Stranding Tinned Copper 300V MachFlex Cable

Description:-

MachFlex for High Flex, 12 Conductor 28 AWG (7x36) Tinned Copper, SRPVC Insulation, Overall Beldfoil+Tinned Copper Serve (90%) Shield, PVC Outer Jacket, CMG.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.035 in (0.89 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

• Shield Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.283 in
• Overall Cable Diameter (Nominal): 0.283 in (7.19 mm)
• Separator: Paper Tape

Standards:-

• UL Voltage Rating: 300 V (AWM 2661)
• Voltage Rating: 300 V (CSA AWM I/II A/B)
• Operating Temperature Range: -10°C To 105°C (Static), 5°C To 105°C (Flexing)

Applications:-

• Robotics, Robot, Continuous Flex.

Specifications:-

• Size (AWG): 28
• No. of Conductors: 12
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 76012WS
