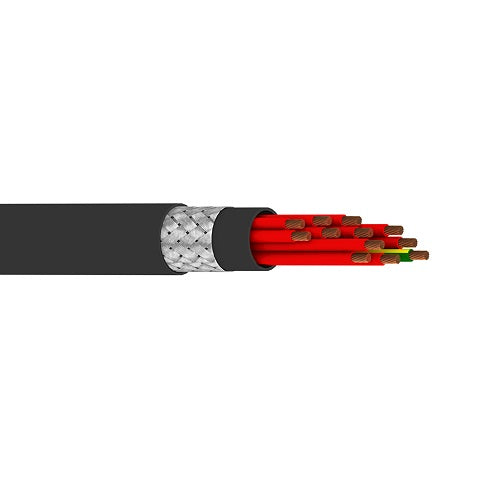

Belden 77812WS 18 AWG 12 Conductor 105x38 Stranding Bare Coppe 600V MachFlex Cable

Description:-

MachFlex for High Flex, 12+G Conductor 18 AWG (105(7x15)x38) Bare Copper, PVC Insulation, Overall Tinned Copper Braid (85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587.

Insulation:-

Element: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.096 in
• Nominal Wall Thickness: 0.022 in

Element: Ground
• Material: PVC - Polyvinyl Chloride

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.480 in
• Nominal Wall Thickness: 0.030 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.634 in
• Nominal Wall Thickness: 0.060 in

Standards:-

• UL Voltage Rating: 600V
• Operating Temperature Range: -40°C To 90°C (Static), -5°C To 90°C (Flexing)

Specifications:-

Element: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 11
• Stranding: 105x38
• Conductor Material: BC - Bare Copper

Element: Ground
• Size (AWG): 18
• No. of Conductors: 1
• Stranding: 105x30
• Conductor Material: BC - Bare Copper
• Part Number: 77812WS
