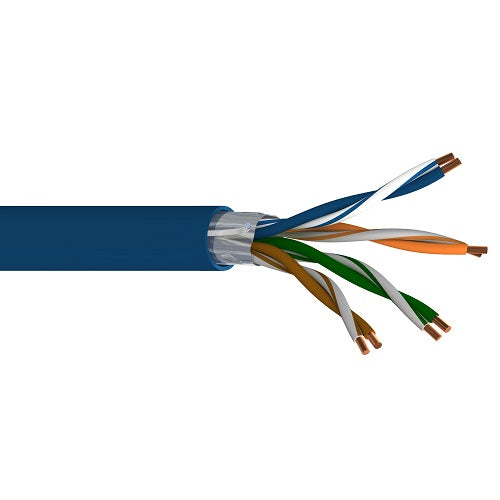

Belden 7901A 24 AWG 4 Pair Solid Bare Copper Industrial Ethernet Cat 5e 300V DataTuff Cable

Description:-

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24 AWG (Solid) Bare Copper, FEP Insulation, Overall Beldfoil Shield, FEP Outer Jacket, CMP.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nominal Diameter: 0.044 in
• Nominal Wall Thickness: 0.011 in

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%
• Drainwire Type: 24 AWG TC - Tinned Copper

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.231 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -70°C To +200°C

Applications:-

• Extreme temp, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:-

• Size (AWG): 24
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 5e
• Conductor Material: BC - Bare Copper
• Part Number: 7901A
