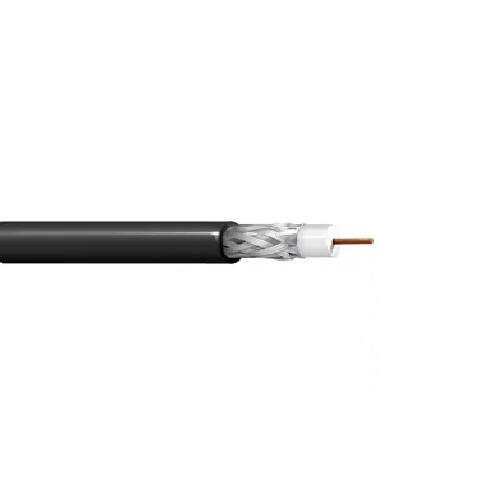

Belden 9167 20 AWG 1 Conductor Solid Silver Plated Copper Covered Steel 300V Coax Cable

Description:-

20 AWG solid 0.032" silver-plated, copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond Plus + aluminum braid shield (95% coverage), PVC jacket (available in 13 colors).

Insulation:-

• Material: Gas-injected FPE - Foam Polyethylene
• Insulation Diameter: 0.144 in.

Outer Shield:-

Layer: 1
• Shield Type: Tape
• Trade Name: Bonded Duofoil
• Material: Bonded Aluminum FoilPolyester Tape-Aluminum Foil
• Coverage: 100

Layer: 2
• Shield Type: Braid
• Material: AL - Aluminum
• Coverage: 95

Layer: 3
• Shield Type: Tape
• Material: Bonded Aluminum FoilPolyester Tape-with Shorting Fold
• Coverage: 100

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Overall Nominal Diameter: 0.242 in.

Standards:-

• UL Voltage: 300 V RMS
• Operating Temperature Range: -40°C To +80°C

Specifications:-

• Size (AWG): 20
• No. of Conductors: 1
• Stranding: Solid
• Series Type: Series 59
• Conductor Diameter: 0.032 in
• Conductor Material: SPCCS - Silver Plated Copper Covered Steel
• Part Number: 9167
