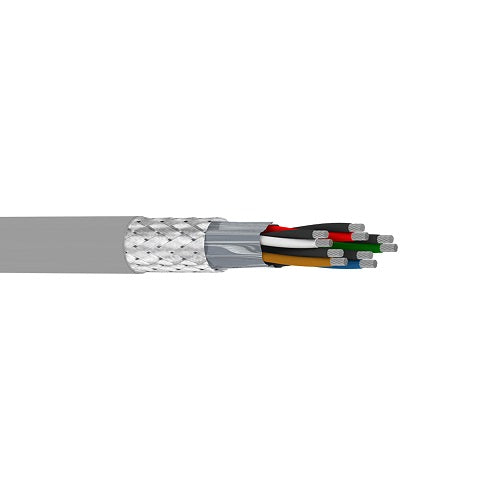

Belden 76405TS 28 AWG 5 Pair 7x36 Stranding Tinned Copper 300V MachFlex Cable

Description:-

MachFlex for High Flex, 5 Pair 28 AWG (7x36) Tinned Copper, SRPVC Insulation, Overall Beldfoil+Tinned Copper Braid (85%) Shield, PVC Outer Jacket, CMG.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.035 in
• Nominal Wall Thickness: 0.010 in

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.274 in
• Nominal Wall Thickness: 0.040 in

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 90 Ohm
• Operating Temperature Range: -10°C To 105°C (Static), 5°C To 105°C (Flexing)

Applications:-

• Robotics, Robot, Continuous Flex.

Specifications:-

• Size (AWG): 28
• No. of Pairs: 5
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 76405TS
