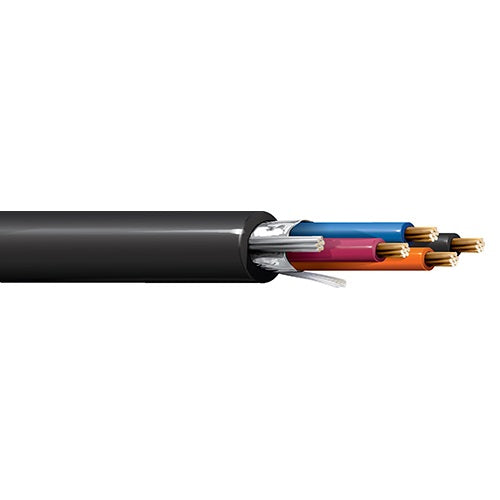

Belden 28335AS 18 AWG 5 Conductor 7x26 Stranding Bare Copper 600V Type TC Cable

Description:-

UL Type TC (1277) PVC-Nylon/PVC, 5 Conductor 18 AWG (7x26) Bare Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR.

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Insulation Diameter: 0.087 in (2.2 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.333 in (8.46 mm)
• Overall Cable Diameter (Nominal): 0.333 in (8.46 mm)

Standards:-

• UL Voltage Rating: 600 V (TC-ER), 150 V (NPLF)
• Operating Temperature Range: -40°C to 90°C Static Operating

Applications:-

• Power and Control Applications up to 600V

Specifications:-

• Size (AWG): 18
• No. of Conductors: 5
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 28335AS
