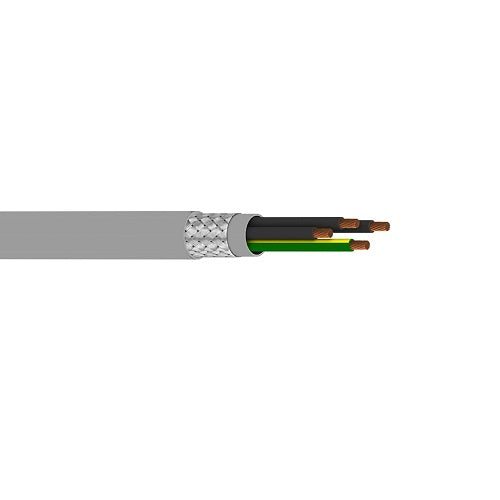

Belden 73204WS 12 AWG 4 Conductor 65x30 Stranding Bare Coppe 600V MachFlex Cable

Description:-

MachFlex for Moderate Flex, 4 Conductor 12 AWG (65x30) Bare Copper, PVC Insulation, Overall Tinned Copper Braid (85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587 CLASS K.

Insulation:-

Element: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.137 in (3.48 mm)

Element: Ground
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.137 in (3.48 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.055 in (1.4 mm)
• Nom. Diameter: 0.450 in (11.4 mm)
• Separator: Paper Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.066 in (1.7 mm)
• Nom. Diameter: 0.616 in
• Overall Cable Diameter (Nominal): 0.616 in (15.6 mm)
• Separator: Paper Tape

Standards:-

• UL Voltage Rating: 600V
• Operating Temperature Range: -40°C To 90°C (Static), -5°C To 90°C (Flexing)

Specifications:-

Element: Conductor(s)
• Size (AWG): 12
• No. of Conductors: 3
• Stranding: 65x30
• Conductor Material: BC - Bare Copper

Element: Ground
• Size (AWG): 12
• No. of Conductors: 1
• Stranding: 65x30
• Conductor Material: BC - Bare Copper
• Part Number: 73204WS
