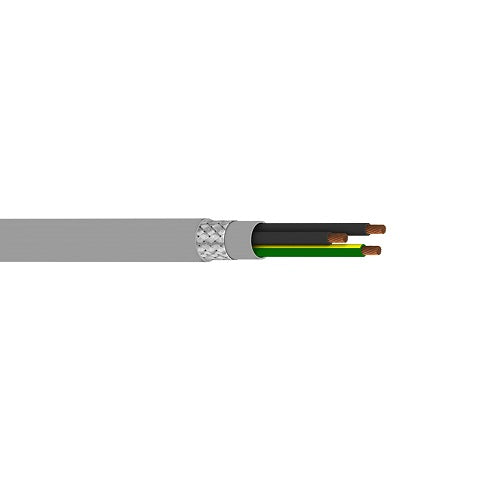

Belden 73403WS 14 AWG 3 Conductor 41x30 Stranding Bare Coppe 600V MachFlex Cable

Description:-

MachFlex for Moderate Flex, 3 Conductor 14 AWG (41x30) Bare Copper, PVC Insulation, Overall Tinned Copper Braid (85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587 CLASS K.

Insulation:-

Element: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.118 in
• Nominal Wall Thickness: 0.022 in

Element: Ground
• Material: PVC - Polyvinyl Chloride

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.331 in
• Nominal Wall Thickness: 0.035 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.443 in
• Nominal Wall Thickness: 0.042 in

Standards:-

• UL Voltage Rating: 600V
• Operating Temperature Range: -40°C To 90°C (Static), -5°C To 90°C (Flexing)

Specifications:-

Element: Conductor(s)
• Size (AWG): 14
• No. of Conductors: 2
• Stranding: 41x30
• Conductor Material: BC - Bare Copper

Element: Ground
• Size (AWG): 14
• No. of Conductors: 1
• Stranding: 41x30
• Conductor Material: BC - Bare Copper
• Part Number: 73403WS
