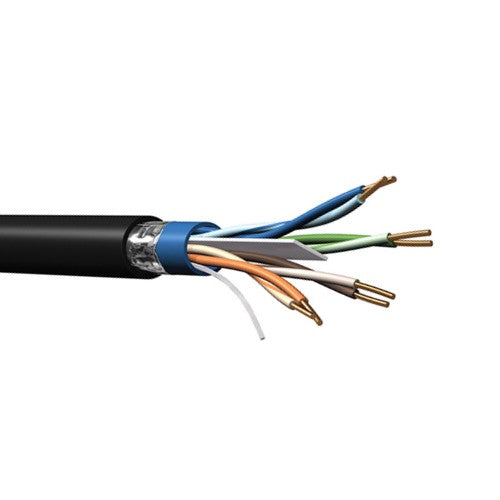

Belden 7953T 23 AWG 4 Pair Solid Bare Copper Industrial Ethernet Cat 6 300V MarineTuff Cable

Description:-

Industrial Ethernet Cat 6, 4 Bonded-Pair 23 AWG (Solid) Bare Copper, PO Insulation, LSZH Inner Jacket, Overall Beldfoil Shield, LSZH Inner Jacket, Flame Barrier, LSZH Outer Jacket, NFPA 130, CMG-ST1, FT4.

Insulation:-

• Material: PO - Polyolefin
• Nom. Insulation Diameter: 0.043 in (1.1 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Inner Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.264 in (6.71 mm)

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.361 in (9.17 mm)

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Material Trade Name: Haloarrest
• Nom. Diameter: 0.487 in (12.4 mm)
• Overall Cable Diameter (Nominal): 0.487 in (12.4 mm)
• Separator: Barrier Tape

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -30°C To +60°C

Applications:-

• Shipboard, transportation, outdoor, in cabinets with high-voltage devices, such as motor control centers, mining, noisy environment, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6
• Conductor Material: BC - Bare Copper
• Part Number: 7953T
