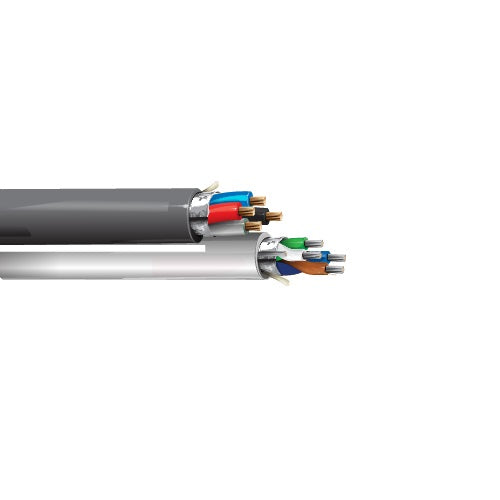

Belden 6386MD 22 AWG 2 Pair Tinned Copper 18 AWG 4 Conductor Bare Copper 300V Dual OSDP Access Control Cable

Description:-

8 Cond - Dual OSDP Access Control Cable, Plenum-CMP, #22-2 Pr Overall Shielded, Overall Jacket, 4-18 AWG conductors, Overall jacket, Banana Peel Construction - CMP.

Insulation:-

Element: Data Pair(s)
• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.021 in (0.53 mm)

Element: Power
• Material: PVC - Polyvinyl Chloride
• Nom. Insulation Diameter: 0.009 in (0.23 mm)

Inner Shield:-

Element: Data Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Element: Power
Unshielded

Inner Jacket:-

Element: Data Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.292 in (7.42 mm)

Element: Power
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.180 in (4.57 mm)

Outer Jacket:-

• Material: Banana Peel (No Overall Jacket)
• Nom. Diameter: 0.472 x 0.292 in
• Overall Cable Diameter (Nominal): 0.472 x 0.292
• Outer Jacket1 Table: Banana Peel

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 120 Ohm
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Access Control, Security System, Power Limited Controls, OSDP Reader

Specifications:-

Element: Data Pair(s)
• Size (AWG): 22
• No. of Pairs: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• 2 Pair 120 Ohm - Dual OSDP In/Out

Element: Power
• Size (AWG): 18
• No. of Conductors: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Power Conductors In/Out
• Part Number: 6386MD
