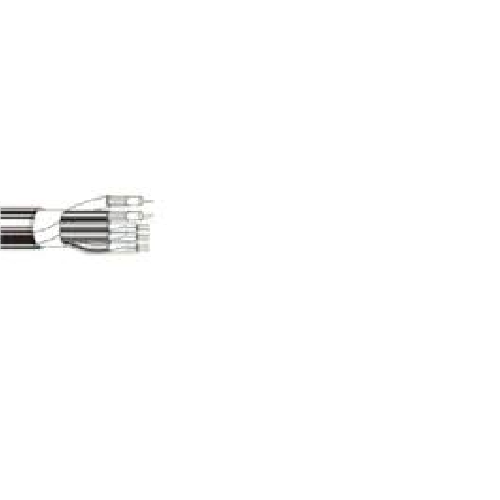

Belden 1263B 25 AWG 2 Conductor 7x33 Stranding Bare Copper 150V Composite Coax Cable

Description:-

Composite, 2 Coax, RG-59 25 AWG BC, stranded (7x33), foil + TC braid 95% coverage, 3 PR 22 AWG TC, stranded (7x30), foil shield, 3 Conductor, overall PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.1 in

• Material: PP - Polypropylene
• Nominal Diameter: 0.046 in

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Duofoil
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper
• Drainwire Diameter: 0.03 in

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Layer: 3
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil (Z-Fold)

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.16 in

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.125 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.492 in

Standards:-

• UL Voltage Rating: 30 V RMS
• Non-UL Voltage Rating: 150 V RMS
• Operating Temperature Range: -20°C To +60°C
• Nominal Characteristic Impedance: 75 Ohm, 50 Ohm

Applications:-

• Electronic News Gathering (ENG), Electronic Field Production (EFP), Analog Audio + Digital Video Composite Applications, 2 V + 3A

Specifications:-

Element: Coax(es)
• Size (AWG): 25
• No. of Coax: 2
• No. of Conductors: 3
• Stranding: 7x33
• Nominal Diameter: 0.021 in
• Conductor Material: BC - Bare Copper

Element: Twisted Pair(s)

• Size (AWG): 22
• No. of Pairs: 3
• Stranding: 7x30
• Nominal Diameter: 0.03 in
• Conductor Material: TC - Tinned Copper
• Part Number: 1263B
