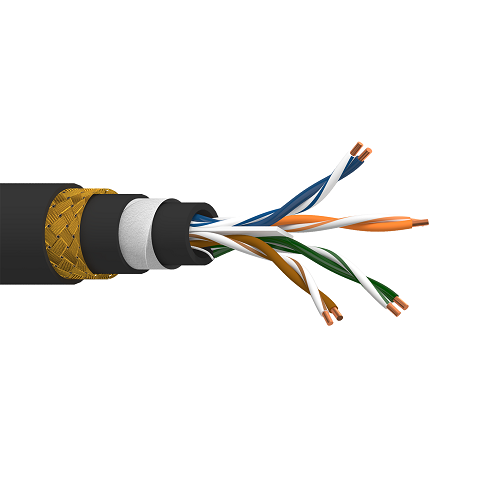

Belden 777940T 23 AWG 4 Pair Solid Bare Copper Industrial Ethernet Cat 6 MarineTuff Cable

Description:-

Industrial Ethernet Cat 6, 4 Bonded Pairs, 23 AWG (Solid) Bare Copper, PO Insulation, LSZH Jacket, Flame Retardant Tape, LSZH Jacket, Bronze Braid Armor, LSZH Outer Jacket, CMG-LS, ABS.

Insulation:-

• Material: PO - Polyolefin

Armor:-

• Armor Type and Material: BBA - Bronze Braid Armor
• Armor Material Diameter: 0.363 in (9.22 mm)
• Coverage: 80%

Inner Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.274 in (6.96 mm)
• Separator: Aramid Tape

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.328 in (8.33 mm)
• Separator: Aramid Tape

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.463 in (11.8 mm)
• Overall Cable Diameter (Nominal): 0.463 in (11.8 mm)

Standards:-

• Operating Temperature Range: -40°C To +75°C

Applications:-

• Marine, shipboard, transit, transportation, outdoor, harsh environment, IoT, factory or process automation, IP cameras and devices, data communication, etc.; exposure to rodent, crush, or cut-through force

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6
• Conductor Material: BC - Bare Copper
• Part Number: 777940T
