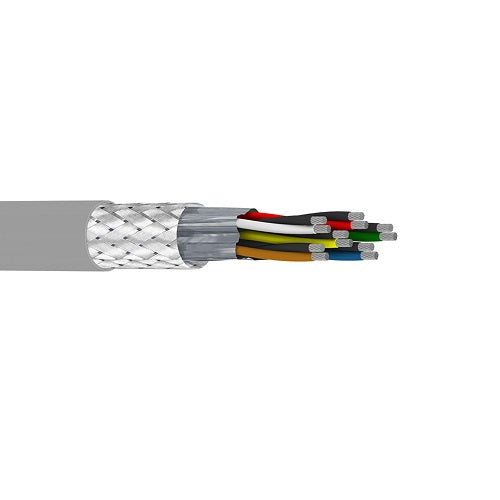

Belden 76606TS 24 AWG 6 Pair 10x34 Stranding Tinned Copper 300V MachFlex Cable

Description:-

MachFlex for High Flex, 6 Pair 24 AWG (10x34) Tinned Copper, SRPVC Insulation, overall beldfoil + tinned copper braid (85%) Shield, PVC Outer Jacket, CMG.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.044 in (1.1 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.314 in
• Overall Cable Diameter (Nominal): 0.314 in
• Separator: Paper Tape

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 76 Ohm
• Operating Temperature Range: -10°C To 105°C (Static), 5°C To 105°C (Flexing)

Applications:-

• Robotics, Robot, Continuous Flex.

Specifications:-

• Size (AWG): 24
• No. of Pairs: 6
• Stranding: 10x34
• Conductor Material: TC - Tinned Copper
• Part Number: 76606TS
