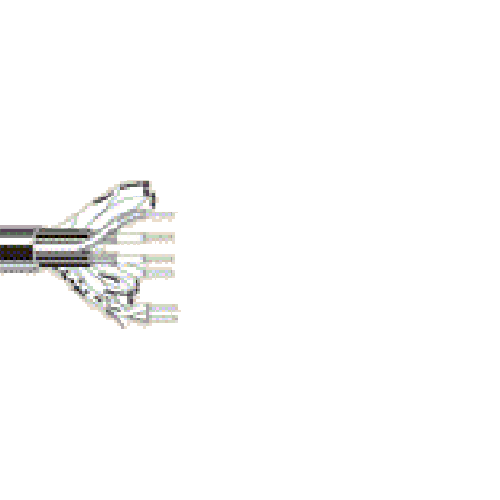

Belden 9171 22 AWG 2 Conductor 7x30 Stranding Bare Copper 300V Coax Cable

Description:-

14-conductor EFP and ENG camera cable, foam polyethylene (coax) and PVC (pairs and conductors) insulation, overall PVC jacket.

Insulation:-

Element: Coax
• Material: FPE - Foam Polyethylene
• Nom. Diameter: 0.146

Inner Shield:-

Element: Coax
• Shield Type: Braid
• Material: BC - Bare Copper
• Coverage: 95%

Outer Jacket:-

Element: Coax
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.242

Standards:-

Element: Coax
• Nom. Characteristic Impedence: 75 Ohm
• RG Type:: 59/U

Insulation:-

Element: Conductor: 22 AWG
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.054

Inner Shield:-

Element: Conductor: 22 AWG
• Shield Type: Tape
• Inner Shield Trade Name: Beldfoil
• Inner Shield Material: Aluminum Foil-Polyester Tape
• Coverage: 100%
• Drain Wire: 22 (7x30) TC - Tinned Copper Dia. (in.): 0.030

Element: Conductor: 16 AWG
• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.092

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.585 in

Standards:-

• Non-UL: 300 V RMS
• Operating Temperature Range: -40°C To +75°C

Specifications:-

Element: Coax
• Size (AWG): 22
• No. of Coax: 2
• Stranding: 7x30
• Nom. Diameter: 0.030
• Conductor Material: BC - Bare Copper

Element: Conductor
• Size (AWG): 16
• No. of Conductors: 2
• Stranding: 26x30
• Nom. Diameter: 0.060
• Conductor Material: TC - Tinned Copper

Element: Conductor
• Size (AWG): 22
• No. of Pairs: 5
• Stranding: 7x30
• Nom. Diameter: 0.030
• Conductor Material: TC - Tinned Copper
• Part Number: 9171
