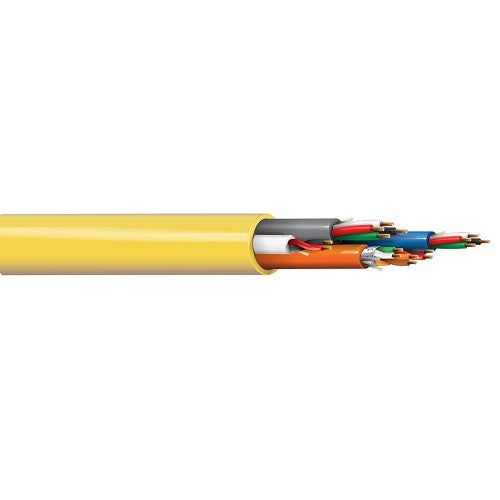

Belden 658AMJ 22 AWG 7x30 Stranding 18 AWG 7x26 Stranding Bare Copper 300V Access Control Cable

Description:-

Access Control Cable, Plenum-CMP, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, all conductors stranded bare copper with Flamarrest insulation, 3-22 AWG pairs have overall Beldfoil shield and Flamarrest jacket, overall Flamarrest jacket.

Insulation:-

Element: Card Reader: Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.047 in (1.2 mm)

Element: Door Contact: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.047 in (1.2 mm)

Element: REX/Spare: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.047 in (1.2 mm)

Element: Lock Power: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Inner Shield:-

Element: Card Reader: Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Element: Door Contact: Conductor(s)
No Shield

Element: REX/Spare: Conductor(s)
No Shield

Element: Lock Power: Conductor(s)
No Shield

Inner Jacket:-

Element: Card Reader: Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.216 in (5.49 mm)

Element: Door Contact: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.124 in (3.15 mm)

Element: REX/Spare: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.143 in (3.63 mm)

Element: Lock Power: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.189 in (4.80 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.455 in (11.6 mm)
• Nom. Thickness: 0.020 in (0.51 mm)
• Overall Cable Diameter (Nominal): 0.455 in (11.6 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Access Control, Security System, Power Limited Controls

Specifications:-

Element: Card Reader: Pair(s)
• Size (AWG): 22
• No. of Pairs: 3
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: Door Contact: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: REX/Spare: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 4
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: Lock Power: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 658AMJ
