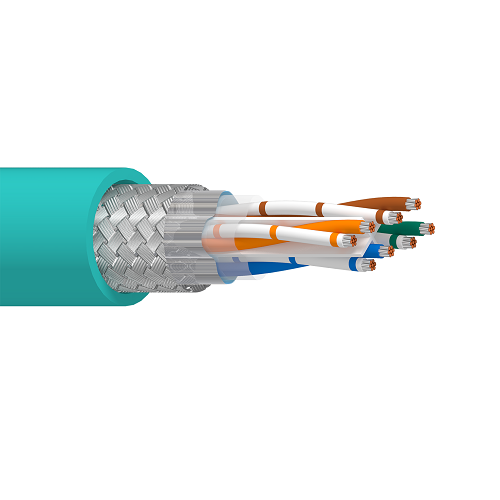

Belden IEA004 24 AWG 4 Pair 7x32 Stranding Tinned Copper Industrial Ethernet Cat 6A 600V DataTuff Cable

Description:-

Industrial Ethernet Cat 6A, 4 Pair 24 AWG (Stranded 7X32) Tinned Copper, PO Insulation, X-Spline, Beldfoil Shield, TPE Outer Jacket, UL CMR, CMX Outdoor, OIL RES II, SUN RES, AWM 600V

Insulation:-

• Material: PO - Polyolefin
• Nom. Insulation Diameter: 0.045 in (1.1 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 75%

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Diameter: 0.322 in (8.18 mm)
• Overall Cable Diameter (Nominal): 0.322 in (8.18 mm)

Standards:-

• UL Voltage Rating: 600 V (UL 2463)
• Operating Temperature Range: -40°C To +75°C

Applications:-

• High Flex, Automation, Robotics, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:-

• Size (AWG): 24
• No. of Pairs: 4
• Stranding: 7x32
• Data Category: Category 6A
• Conductor Material: TC - Tinned Copper
• Part Number: IEA004
