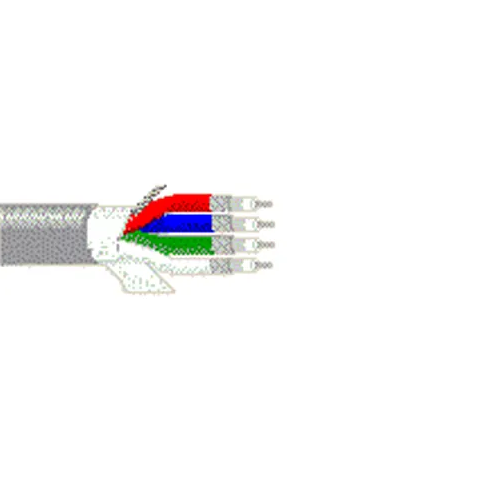

Belden 1278R 25 AWG 4 Conductor Solid Tinned Copper 300V RGB Video Coax Cable

Description:-

RGB Video Coax, Riser-CMR, 4-25 AWG solid tinned copper conductors, foam polyethylene insulation, Duofoil + 95% tinned copper interlocked serve shield, inner PVC jackets, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.074 in
• Gas Injected

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: French Braid
• Material: Tinned Copper (TC)
• Coverage: 95%
• Drainwire Type: Tape lightly bonded to dielectric

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.114 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.351 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Non-UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +75°C

Applications:-

• RGB Projectors, LCD Projectors, Video Distribution, Component Video, Graphic Displays, Special Effects Editing, Animation, Video Post Production, Home Theater, Offices, Boardrooms, Auditoriums, Teleconferencing, Theaters

Specifications:-

• Size (AWG): 25
• No. of Conductors: 4
• Stranding: Solid
• Nominal Diameter: 0.018 in
• Conductor Material: TC - Tinned Copper
• Part Number: 1278R
