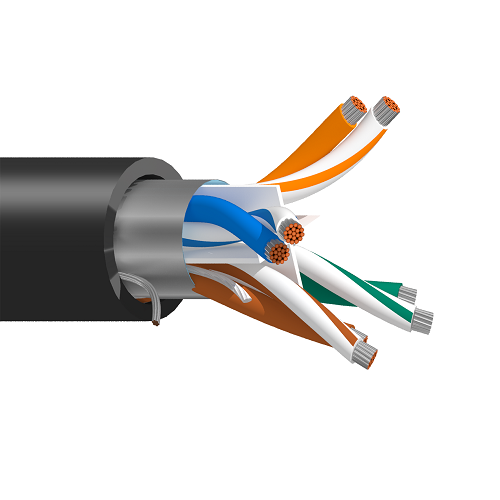

Belden 7945A 23 AWG 4 Pair Solid Bare Copper Industrial Ethernet Cat 6 300V DataTuff Cable

Description:-

Industrial Ethernet Cat 6, 4 Bonded-Pair 23 AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CMR, CMX-Outdoor.

Insulation:-

• Material: PO - Polyolefin

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.313 in (7.95 mm)
• Overall Cable Diameter (Nominal): 0.313 in (7.95 mm)
• Separator: Center Member (Patented X-Spline)

Standards:-

• UL Voltage Rating: 300 V (CMR, CMX-Outdoor)
• Operating Temperature Range: -40°C To +75°C

Applications:-

• Outdoor, in cabinet, control center, mining, noisy environment, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, PoE++, PoE+, PoE, etc.

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6
• Conductor Material: BC - Bare Copper
• Part Number: 7945A
