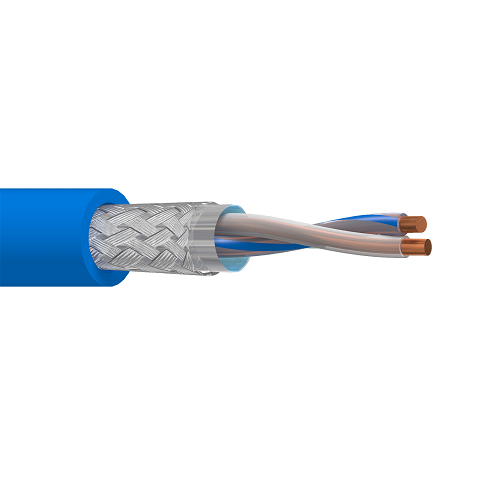

Belden SPE402 26 AWG 1 Pair Solid Bare Copper 300V DataTuff Cable

Description:-

DataTuff Industrial Single Pair Ethernet 40m 1Gbps 100 Ohm 26 AWG (Solid) Bare Copper, PP Insulation, Overall Beldfoil+Tinned Copper Braid (80%) Shield, PVC Outer Jacket.

Insulation:-

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.051 in (1.3 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 80%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.161 in (4.09 mm)

Standards:-

• Voltage Rating:300 V (IEC 61156-12)
• UL Voltage Rating: 300 V (UL AWM 2095)
• Operating Temperature Range: -20°C To +80°C

Applications:-

• Noisy environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:-

• Size (AWG): 26
• No. of Pairs: 1
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: SPE402
