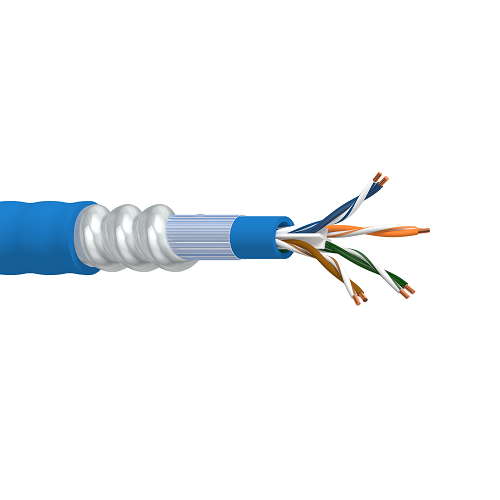

Belden 127925R 23 AWG 4 Pair Solid Bare Copper Industrial Ethernet Cat 6 300V DataTuff Cable

Description:-

Industrial Ethernet Cat 6, 4 Bonded-Pair 23 AWG (Solid) Bare Copper, PO Insulation, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CMR CMG.

Insulation:-

• Material: PO - Polyolefin

Armor:-

• Armor Type and Material: AIA - Aluminum Interlock Armor
• Diameter Over Armor:  0.510 in (13.0 mm)

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.235 in (5.97 mm)
• Separator: Center Member (Patented X-Spline)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.600 in (15.2 mm)

Standards:-

• UL Voltage Rating: 300 V (CM)
• Operating Temperature Range: -25°C To +75°C

Applications:-

• Harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.; exposure to rodent, crush, or cut-through force.

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6
• Conductor Material: BC - Bare Copper
• Part Number: 127925R
