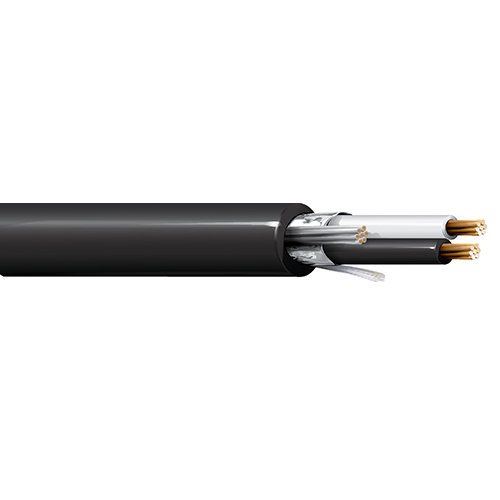

Belden 1030AE 16 AWG 1 Pair 7x24.5 Stranding Bare Copper 300V Instrumentation PLTC Cable

Description:-

UL Instrumentation, 1 Pair 16 AWG (7x24) Bare Copper, PVC-Nylon Insulation E1 Color Code, Overall Beldfoil Shield, Black PVC Outer Jacket, PLTC-ER ITC CMG AWM 2464 SUN RES DIR BUR.

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Layer: 0.017, 0.005
• Nominal Diameter: 0.101 in
• Nominal Wall Thickness: 0.019 in
• Min. Average Wall Thickness: 0.015 in, 0.005 in mm

Inner Shield:-

• Shield Type: Tape
• Material: Polypropylene Foam
• Coverage: 100%

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate(Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.315 in
• Nominal Wall Thickness: 0.047 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -30°C To +105°C

Applications:-

• Exposed Runs, Hazardous Locations, PLC,4-20ma

Specifications:-

• Size (AWG): 16
• No. of Pairs: 1
• Stranding: 7x24.5
• Conductor Material: BC - Bare Copper
• Part Number: 1030AE
