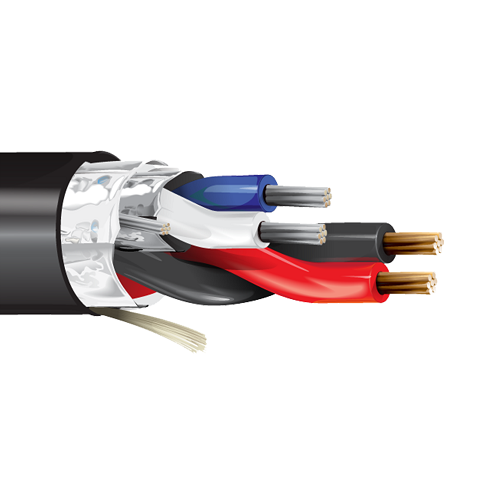

Belden 5381M1 22 AWG 1 Pair 18 AWG 2 Conductor 300V OSDP Reader Cable

Description:-

OSDP Reader Cable, 1 Pair 22 AWG stranded (7x30) tinned copper (data) with foam Polyethylene insulation, Beldfoil shield w/ drain, 2 Conductor 18 AWG stranded (7x26) Bare copper conductor (power) with Waterblocking Tape, overall UV-resistant PVC Jacket. Indoor/Outdoor CM Rated.

Insulation:-

Element: Data Pair(s)
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.029 in (0.74 mm)

Element: Power Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)

Inner Shield:-

Element: Data Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Element: Power Pair(s)

• No Shield

• Inner Shield Table Notes: Overall Waterblocking Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.275 in (6.99 mm)
• Separator: Waterblocking Tape
• 100% WaterBlocking Tape
• Outer Jacket1 Table Notes: Waterblocking Tape 100% Coverage
• Overall Cable Diameter (Nominal): 0.275 in (6.99 mm)

Standards:-

• UL Voltage Rating: 300 V (300 V)
• Nom. Characteristic Impedance: 120 Ohm
• Operating Temperature Range: -20°C to +75°C

Applications:-

• OSDP Readers, RS-485, Serial Data, Access Control

Specifications:-

Element: Data Pair(s)
• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Twisted Pair Configuration

Element: Power Pair(s)
• Size (AWG): 18
• No. of Conductors: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Power Conductors
• Part Number: 5381M1
