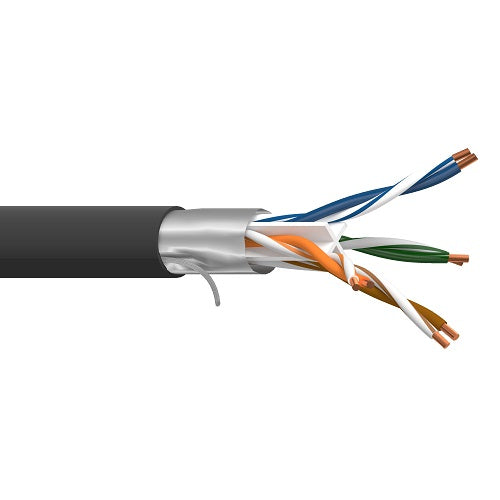

Belden IEA002 23 AWG 4 Pair Solid Bare Copper Industrial Ethernet Cat 6A 300V DataTuff Cable

Description:-

Industrial Ethernet, Cat 6A, 4 Bonded-Pair, 23 AWG Solid Bare Copper, PO Insulation, Patented X-Spline Technology, Overall Beldfoil Shield (F/UTP), PVC Jacket, CMR/CMX Outdoor

Insulation:-

• Material: PO - Polyolefin
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Polyester + Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Separator: Center Member (Patented X-Spline)
• Nom. Diameter: 0.311 in (7.90 mm)
• Overall Cable Diameter (Nominal): 0.311 in (7.90 mm)

Standards:-

• Voltage Rating: 300 V
• Operating Temperature Range: -40°C To +75°C
• UL Voltage Rating: 300 V RMS (CMR/CMX Outdoor), 600V RMS (AWM 21137)

Applications:-

• Harsh environment, exposure to oil, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6A
• Conductor Material: BC - Bare Copper
• Part Number: IEA002
